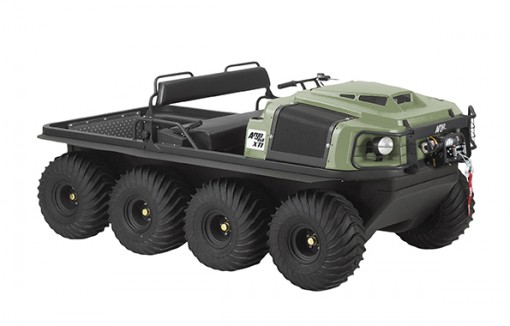

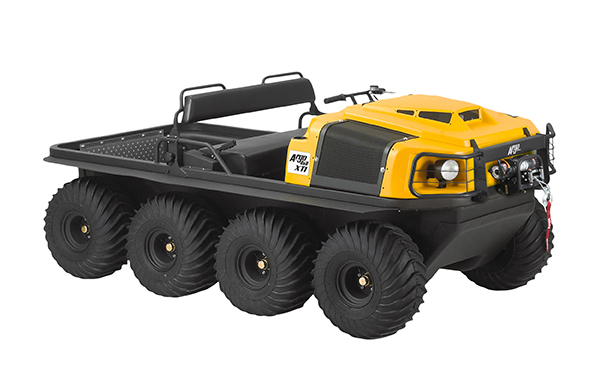

The Conquest 8×8 XTd makes it easy to get tools and personnel where they need to be. It’s powered by a 4-cycle OHV V-Twin gasoline EFI engine and can carry up to 1,210 lb. and 2 passengers — up to 4 on land with the optional rear bench seat. The Conquest 8X8 XTd can tow up to 2,000 lb. and has an electronic ignition and liquid cooled 24 HP diesel engine.
• 24HP Kohler Diesel Liquid Cooled Engine
• 25” Steel Rims
• Skid Plate
• Bilge Pump
• 4500 lb Warn Winch
• Brushguard
• HD Drive Belt
• Alternator
• Rear Winch Receiver Wiring
• Auto Chain Lubrication System
• Transmission Option: Admiral – STD (34-200-7.1)
| Engine | Kohler KDW1003 |
| Engine Warranty | 3 Year |
| Type | Naturall aspirated, overhead cam, in-line 3-cylinder diesel engine |
| Horsepower* | 24 |
| Displacement | 1028 cc |
| Cooling | Liquid Cooled |
| Alternator | 65 amp |
| Service Brakes | Hydraulic |
| Steering Brakes | Hydraulic |
| Brake Cooling Fan | Optional |
| Steering | Multi-position, one-piece ergonomic handlebar steering control features hand brake. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with independent High and Low range; Forward, Neutral, Reverse. |
| Transmission Options | STD |
| Drive System | Chains drive machined sprockets. 1 1/2″ diameter axle supported by dual tapper roller bearings in an aluminum housing. Axles are prefilled with gear oil for lubrication. |
| Final Drive | RS60HT heavy duty roller chain with automatic, spring loaded tensioners. |
| HD Drive Belt | Standard |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Brushguard | Standard |
| Winch | 4,500 lb Warn Winch |
| Bilge Pump | Standard |
| Load Capacity – On Land | 1210 lb./549 kg total |
| Load Capacity – Rear Compartment | — |
| Load Capacity – On Water | 710 lb. / 322 kg total |
| Towing Capacity | 2000 lb. / 907 kg |
| Seating Capacity | 2 persons (4 optional) on land, 2 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 17 mph / 27 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 1890 lb. / 857 kg |
| Axle Bearing Extensions | Standard |
| Instrumentation | Analog Gauge Cluster, Speedometer with digital odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure, fuel level guage, water temp. indicator and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step | Optional |
| Tires | ARGO AT189 25 x 12.00-9NHS |
| Ground Pressure | 2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires | 9 inches – 230 mm |
| Ground Clearance Tracks | 10 inches – 255 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
*subject to change without notice
