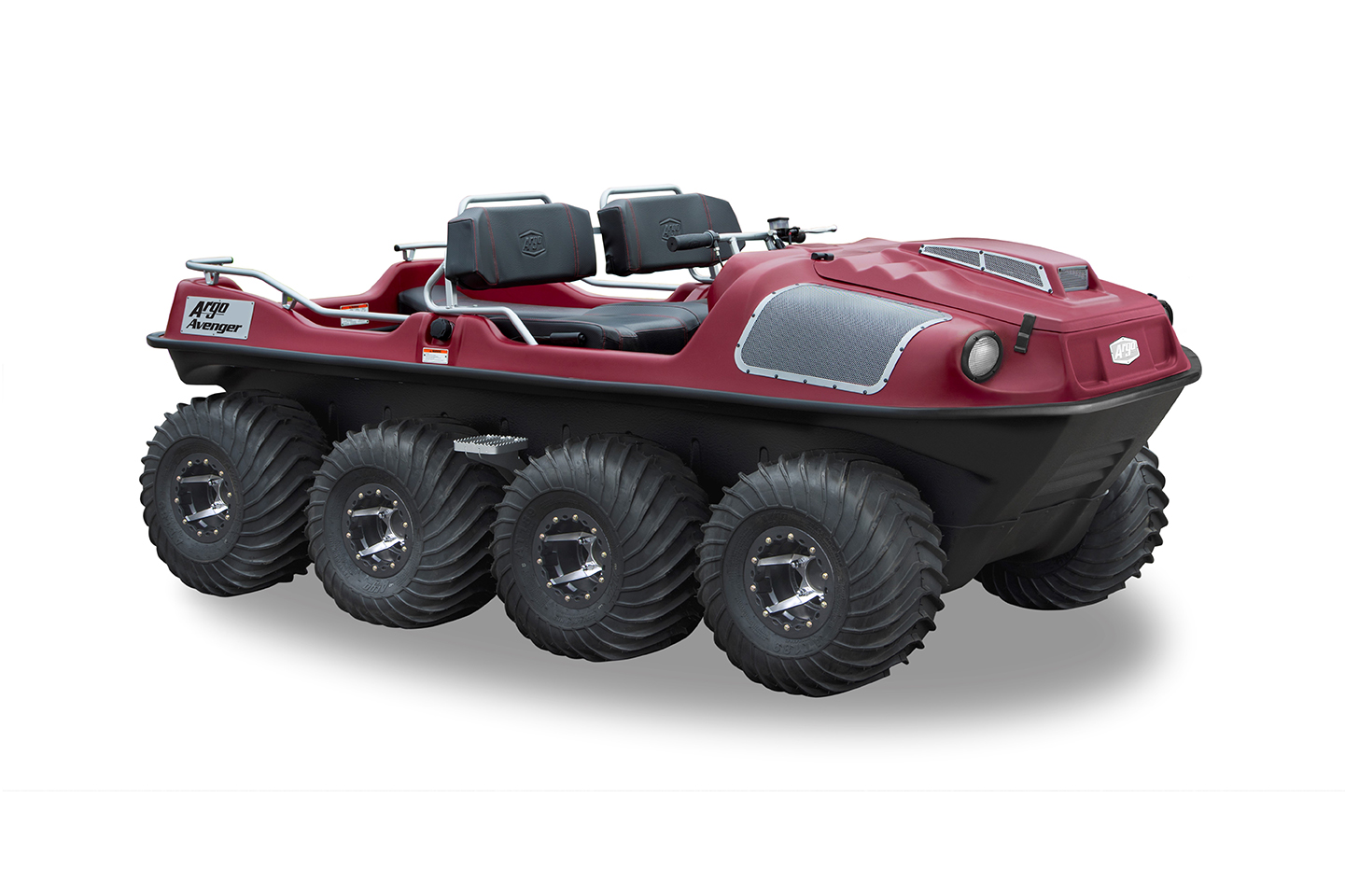

Looking to bring a little luxury into the outdoors? The Avenger 8×8 LX is just what you need. It seats 6 on land and 4 on the water while carrying up to 1,000 lb. The ultra smooth front and rear seat cushions coupled with the new beadlock rims and low-pressure tires will get you to your destination in style and comfort.
• 30HP Kohler Liquid Cooled Engine
• 25” Aluminum Off-Set Bead Lock Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Dual Side Entry Steps
• Brake Cooling Fan
• HD Drive Belt
• Alternator
• LX Package (Premium Seats, Stereo, Handrails, Clear headlight Lens, Brake/Tail Lights)
• Transmission Option: Admiral – HS (34-200-6.2)
| Engine | Kohler Aegis ELH775 |
| Engine Warranty | 3 Year |
| Type | 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders |
| Horsepower* | 30 |
| Displacement | 747cc |
| Cooling | Liquid Cooled |
| Alternator | Standard |
| Service Brakes | Hydraulic |
| Steering Brakes | Hydraulic |
| Brake Cooling Fan | Standard |
| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with independent High and Low range; Forward, Neutral, Reverse. |
| Transmission Options | HS |
| Drive System | Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings. |
| Final Drive | RC50-2 and RC60 roller chain drive to all 8 axles |
| HD Drive Belt | Standard |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Brushguard | Optional |
| Winch | Optional |
| Bilge Pump | Standard |
| Load Capacity – On Land | 1000 lb. /454 kg total |
| Load Capacity – Rear Compartment | — |
| Load Capacity – On Water | 850 lb. / 386 kg total |
| Towing Capacity | 1800 lb. / 816 kg |
| Seating Capacity | 6 persons on land, 4 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 25 mph / 40 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 1400 lb. /635 kg |
| Axle Bearing Extensions | Standard |
| Instrumentation | LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step | Dual Side Entry Steps |
| Tires | ARGO AT189 25 x 12.00-9NHS |
| Ground Pressure | 2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires | 9.5 inches – 240 mm |
| Ground Clearance Tracks | 10.5 inches – 265 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
*subject to change without notice
