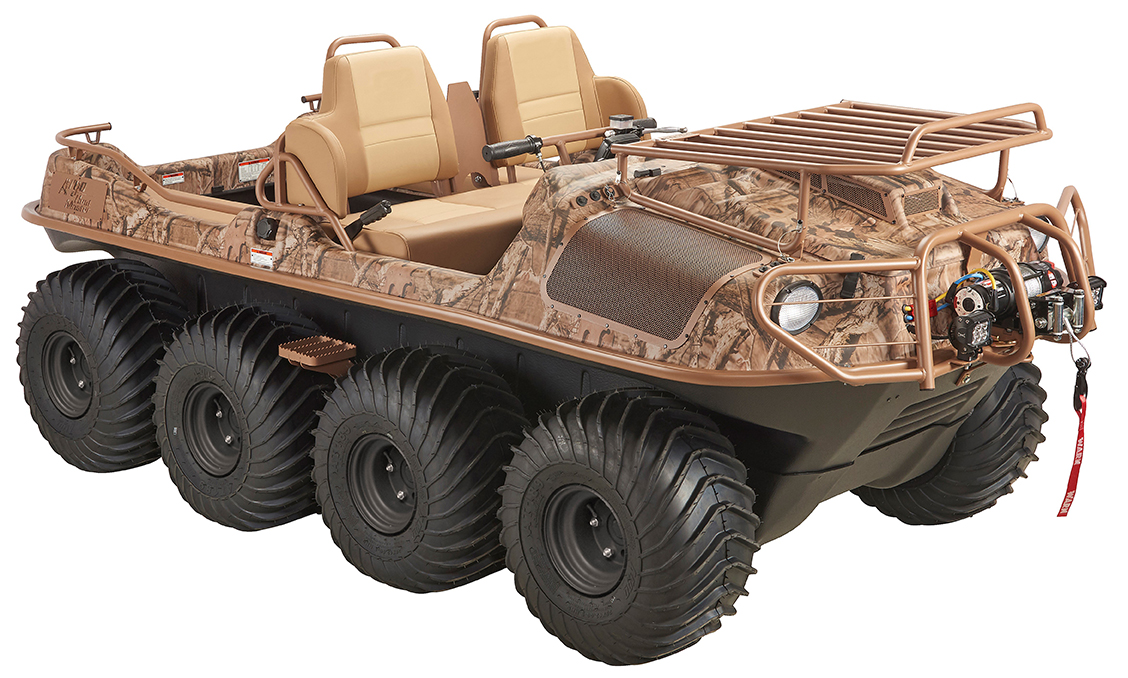

For the hunting enthusiast, it doesn’t get much better than the ARGO Avenger Hunt Master series. The Avenger 8×8 Hunt Master Z holds up to 6 passengers on land and 4 on the water with a load capacity of 855 lb. The liquid cooled 30 HP Kohler engine will get you where you need to go, and the upgraded front and rear seats will keep you comfortable on the way.
• 30HP Kohler Liquid Cooled Engine
• 25” Steel Off-Set Rims
• Skid Plate
• Bearing Extensions
• Bilge Pump
• Dual Side Entry Steps
• 3500 lb Warn Winch
• Brushguard
• HD Drive Belt
• Heater and Alternator
• Hunt Master Package (Premium Seats, Front Rack & Gun Rack, Handrails, Rear Receiver Winch Wiring, Fog Lights, Brake/Tail Lights)
• Transmission Options: Admiral – HT (34-200-8.1) and Admiral – STD (34-200-6.2)
| Engine | Kohler Aegis ELH775 |
| Engine Warranty | 3 Year |
| Type | 4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders |
| Horsepower* | 30 |
| Displacement | 747cc |
| Cooling | Liquid Cooled |
| Alternator | Standard |
| Service Brakes | Hydraulic |
| Steering Brakes | Hydraulic |
| Brake Cooling Fan | Optional |
| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with independent High and Low range; Forward, Neutral, Reverse. |
| Transmission Options | STD or HT |
| Drive System | Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings. |
| Final Drive | RC50-2 and RC60 roller chain drive to all 8 axles |
| HD Drive Belt | Standard |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Brushguard | Standard |
| Winch | 3,500 lb Warn Winch & Rear Receiver Winch Kit |
| Bilge Pump | Standard |
| Load Capacity – On Land | 885 lb. /401 kg total |
| Load Capacity – Rear Compartment | — |
| Load Capacity – On Water | 735 lb. / 333 kg total |
| Towing Capacity | 1800 lb. / 816 kg |
| Seating Capacity | 6 persons on land, 4 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 20 mph / 32 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 1515 lb. /687 kg |
| Axle Bearing Extensions | Standard |
| Instrumentation | LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step | Dual Side Entry Steps |
| Tires | ARGO AT189 25 x 12.00-9NHS |
| Ground Pressure | 2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires | 9.5 inches – 240 mm |
| Ground Clearance Tracks | 10.5 inches – 265 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
*subject to change without notice
