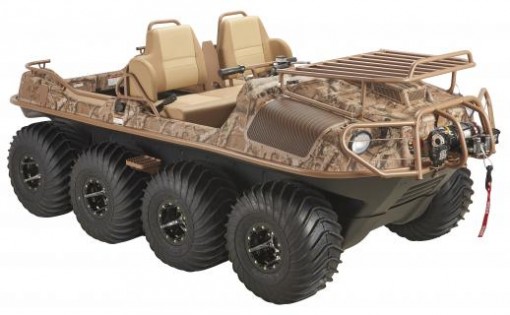

The Argo Avenger 8×8 Hunt Master R has everything you need to enjoy the great outdoors — especially if you’re a hunter or fisherman. It comes equipped with a Kohler Aegis ELH775 engine and can carry up to 910 lbs along with up to 6 people on land. You can take all of your gear to any location across mud, sand, swamps, even bodies of water. Just drive in and the Hunt Master R will float along using the tire treads as paddles. You can also add an outboard motor to cross water even faster. Grab your gear and your pals and hit the road.
Avenger 8×8 Hunt Master R Overview
• 30hp Kohler EFI Liquid-Cooled Engine
• 2 Gun Vertical Rack
• Bilge Pump Kit
• Brushguard
• Entry Step
• Front Hood Rack
• Front and Rear Bearing Extensions
• Heavy Duty Drive Belt
• High Powered LED Fog Lights
• Rear Brake Lights
• Rear Passenger Handrails
• Skid Plate
• USB / 12 Volt Outlet
• Upgraded High Back Seats and Trim
• Warn Provantage 3500 Cable Winch
• 1 3/8″ Forged Axles with 9in Steel Off-Set Rims
• Custom Desert Tan Paint / Infinity Camo Laminate
Avenger 8×8 Hunt Master R Colors
Avenger 8×8 Hunt Master R Features
Avenger 8×8 Hunt Master R Specs
Avenger 8×8 Hunt Master R Specs
| Engine |
Kohler Aegis ELH775 |
| Engine Warranty |
3 Year |
| Type |
4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders |
| Horsepower* |
30 |
| Displacement |
747cc |
| Cooling |
Liquid Cooled |
| Alternator |
Optional |
| Service Brakes |
Hydraulic |
| Steering Brakes |
Hydraulic |
| Brake Cooling Fan |
Optional |
| Steering |
One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls |
Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch |
Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission |
ADMIRAL triple differential steering transmission with independent High and Low range; Forward, Neutral, Reverse. |
| Transmission Options |
STD or HT |
| Drive System |
Chains drive machined sprockets. 1 3/8″ diameter axles with triple sealed greaseable outer bearings. |
| Final Drive |
RC50-2 and RC60 roller chain drive to all 8 axles |
| HD Drive Belt |
Standard |
| Frame |
Formed steel channel construction, welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body |
Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate |
Standard |
| Brushguard |
Standard |
| Winch |
3,500 lb Warn Winch & Rear Receiver Winch Kit |
| Bilge Pump |
Standard |
| Load Capacity – On Land |
910 lb. /413 kg total |
| Load Capacity – Rear Compartment |
— |
| Load Capacity – On Water |
760 lb. / 345 kg total |
| Towing Capacity |
1800 lb. / 816 kg |
| Seating Capacity |
6 persons on land, 4 persons on water |
| Fuel Capacity |
7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) |
20 mph / 32 km per hour |
| Speed (on water) |
3 mph / 5 km per hour |
| Shipping Weight |
1490 lb. /676 kg |
| Axle Bearing Extensions |
Standard |
| Instrumentation |
LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Entry Step |
Dual Side Entry Steps |
| Tires |
ARGO AT189 25 x 12.00-9NHS |
| Ground Pressure |
2.5 psi (17.2 kPa) using tires |
| Ground Clearance Tires |
9.5 inches – 240 mm |
| Ground Clearance Tracks |
10.5 inches – 265 mm |
| Operating Conditions |
All weather,all-terrain,-40°C to +40°C |
| Dimensions |
 |
*subject to change without notice
