8×8 XTI

8×8 XTI

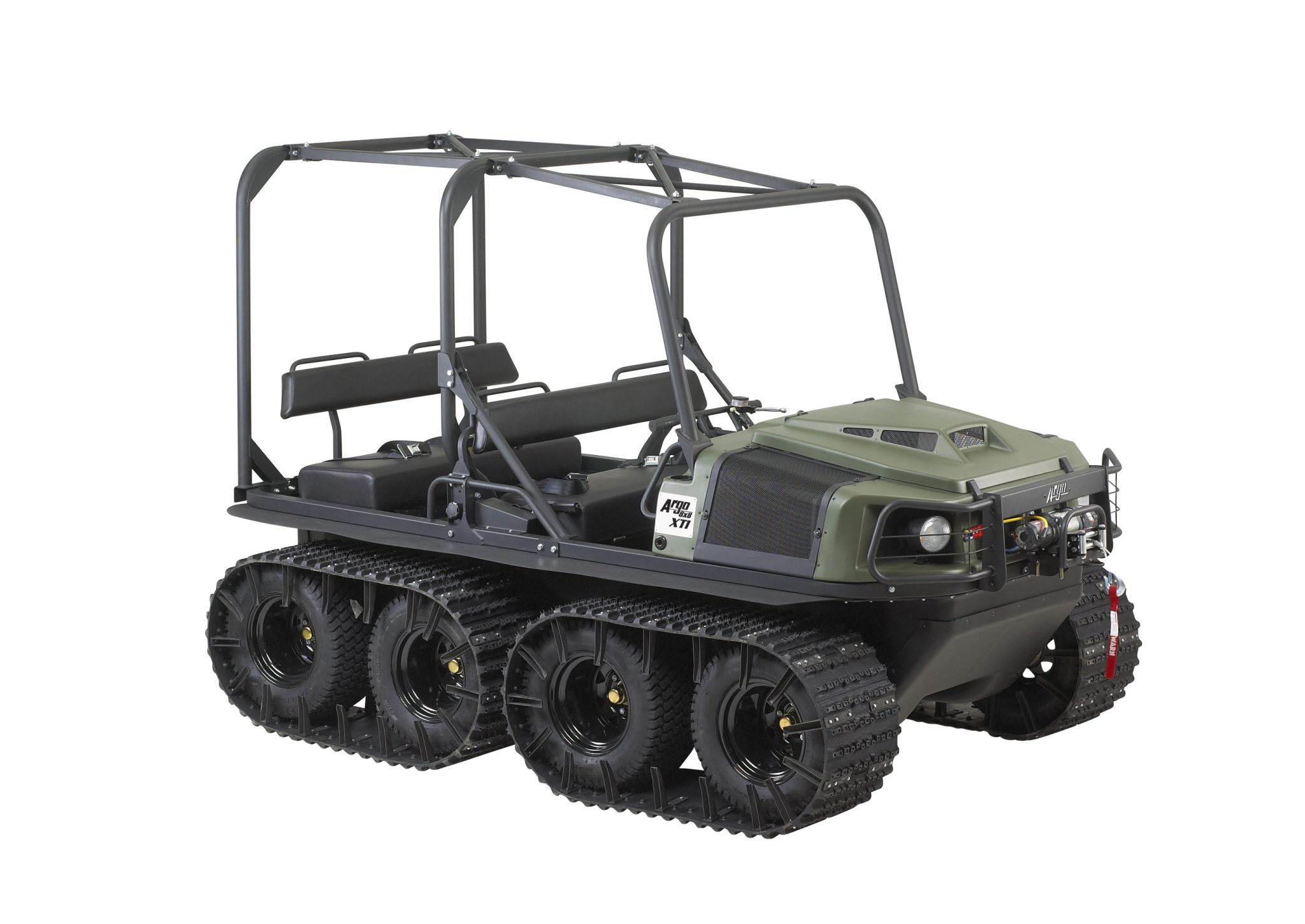

This 8-wheel-drive amphibious off-road vehicle is powered by a 748cc (45.6 cu. In.) liquid-cooled, V-twin, electronic fuel injected Kohler Aegis engine. The engine provides 30 hp (22.06 kW) and 47.7 lbs. ft. (64.6 Nm) of torque to the ADMIRAL two-speed transmission. It has a load capacity of up to 1,500 lb. / 680 kg on land or 1,000 lb. / 454 kg on water. Can transport up to 4 passengers on land and 2 on water and features a towing capacity of 2,000 lb. / 907 kg. Available in tracked or non-tracked configurations.

8×8 XTI Overview

The 8×8 XTI is the ultimate all-terrain machine for those who require a durable, robust and dependable job site transporter. Designed for demanding commercial uses, the XTI has what people need to get their job done; large payload capacity, tubular steel frame, sealed axles and comfort for staff. The low operational weight, coupled with the efficient ADMIRAL steering transmission, makes this the ideal vehicle to transport people and equipment through the harshest terrain. With integrated frame mounting locations and universal mounting accessory, adding tools or equipment to the rear of the vehicle is convenient, simple and quick. Adding rubber tracks makes this the best-in-class vehicle when the task takes you off the beaten path.

8×8 XTI Colors

Color_8x8_XTD

8×8 XTI Features

• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Increased steering efficiency for more and constant power to the wheels
• Electronic Fuel Injection provides:
1. Increased fuel efficiency
2. Reliable cold weather starting
3. Improved high altitude performance
4. On-board diagnostics

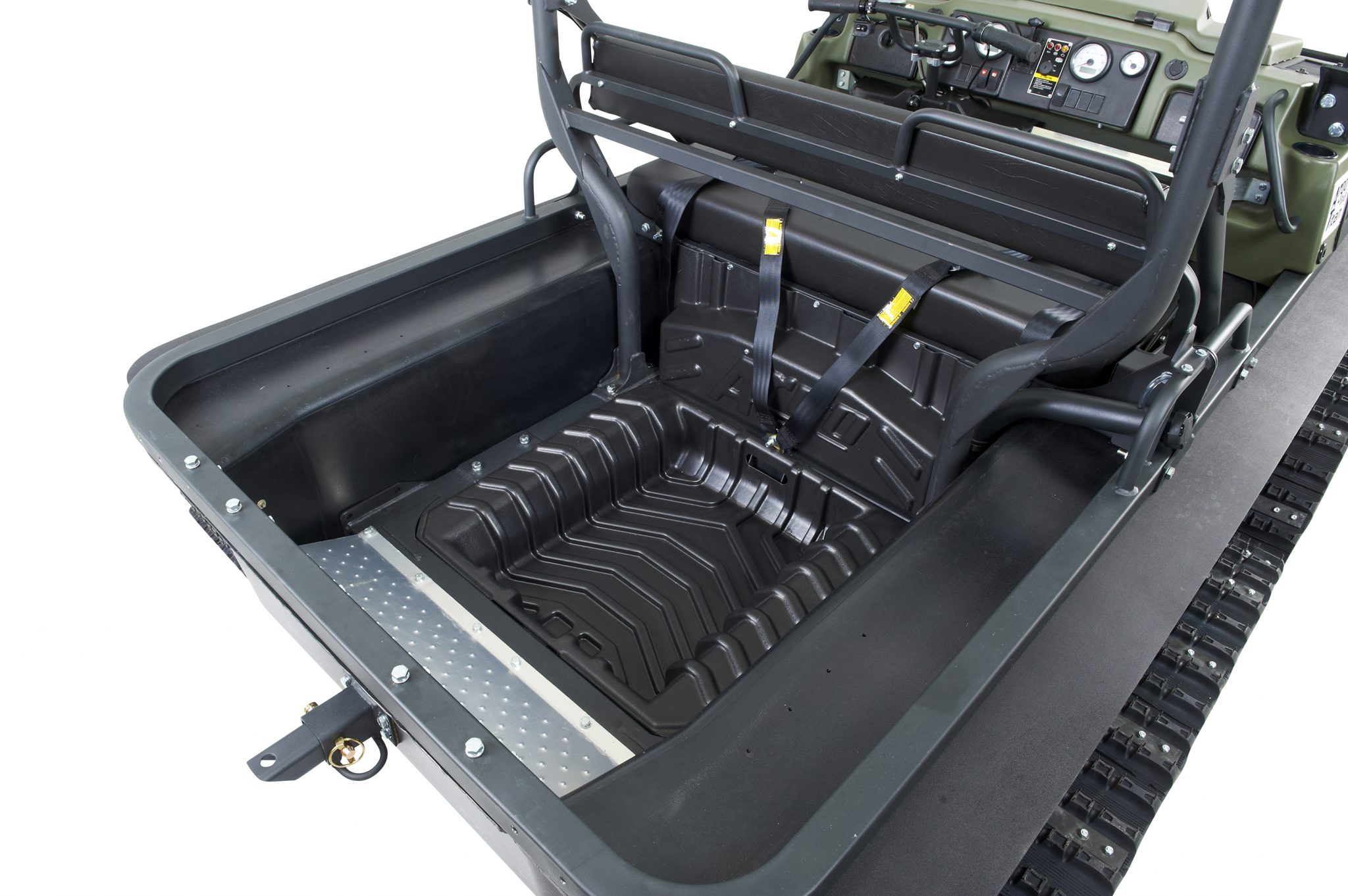

• Large rear cargo capacity
• Modular accessory designs for quick and easy change-over
• Large engine compartment with quick detach body panels
• Long wheel base for increased ride comfort over rough terrain
• Wide 65” wheel base for superior stability
• Oil-bath drive axles supported by taper roller bearings
• Full skid plate for lower body protection
• 8-wheel traction with low center of gravity for extra stability
• 25″ (63.5 cm) ARGO tires with proprietary tread design
• Electronic ignition

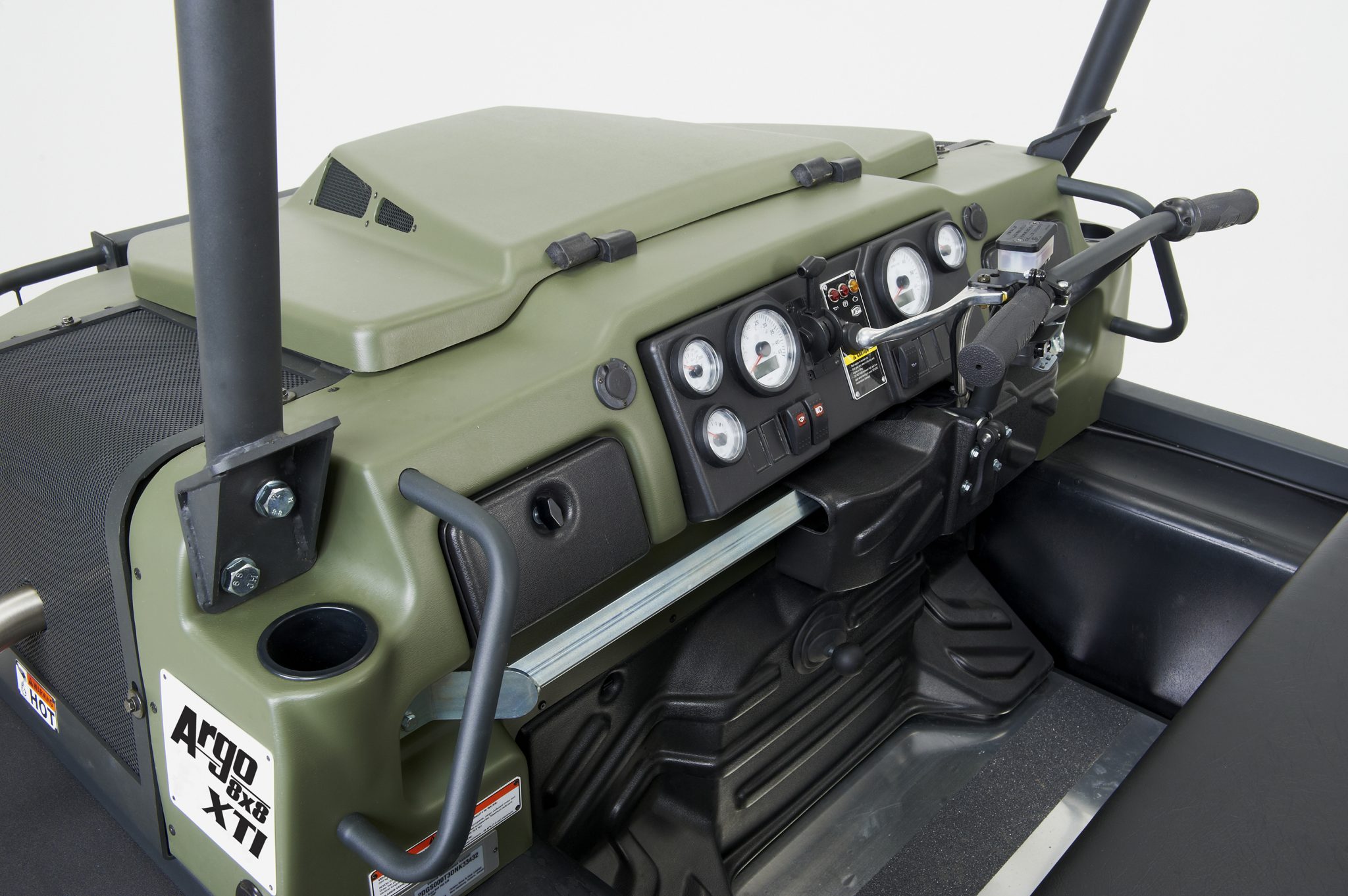

• Analogue Gauge (speedometer with digital odometer, tachometer with digital hour meter, fuel level, voltmeter, engine coolant temperature, warning lights; low oil pressure, parking brake on and glow plug on)
• Multi-position handlebars, Left, Right or Center
• Dual 12V outlets and Glove Boxes
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• 3-year limited engine warranty

8×8 XTI Specs

Engine  4 Cycle OHV V-Twin, petrol. 3 year engine warranty.
Model  Kohler Aegis LH 775
Horsepower  30 hp (23.1 kW)
Displacement  748cc
Cooling  Liquid cooled
Starting  Electric
Brakes  Hydraulically activated disc brakes
Steering  Multi-position, one-piece, ergonomic handlebar steering
Controls  Centre mount, analog dash panel, tachometer with digital hour meter, speedometer with digital odometer, fuel gauge, volt meter, water temperature
Clutch  Continuously Variable Transmission (CVT) with heavy duty drive belt
Transmission  ADMIRAL triple differential steering transmission
Drive System  RS60HT heavy series roller chain connects 8 axles to the ADMIRAL transmission
Frame  Powder coated, 3″ tubular steel, welded construction
Body  Vacuum formed upper body, lower hull and skid plate formed from High Molecular Weight Polyethylene (HMWPE)
Full Skid Plate  Standard
Load Capacity – On Land  1500 lb. / 680 kg
Load Capacity – On Water  1000 lb. / 454 kg
Towing Capacity  2000 lb. / 907 kg
Seating Capacity – On land   2 persons – 4 optional
Seating Capacity – On Water  2 persons
Fuel Capacity  9.5 US gallons (36 litres) providing 8 – 10 hours of operation
Speed (on land)  17 mph / 27 kph
Speed (on water)  3 mph / 5 kph
Shipping Weight  1600 lb. / 726 kg
Axles  1.50″ (38 mm) diameter axles housed in an oil filled aluminum housing
Tires  ARGO AT189 25×12.00-9 NHS

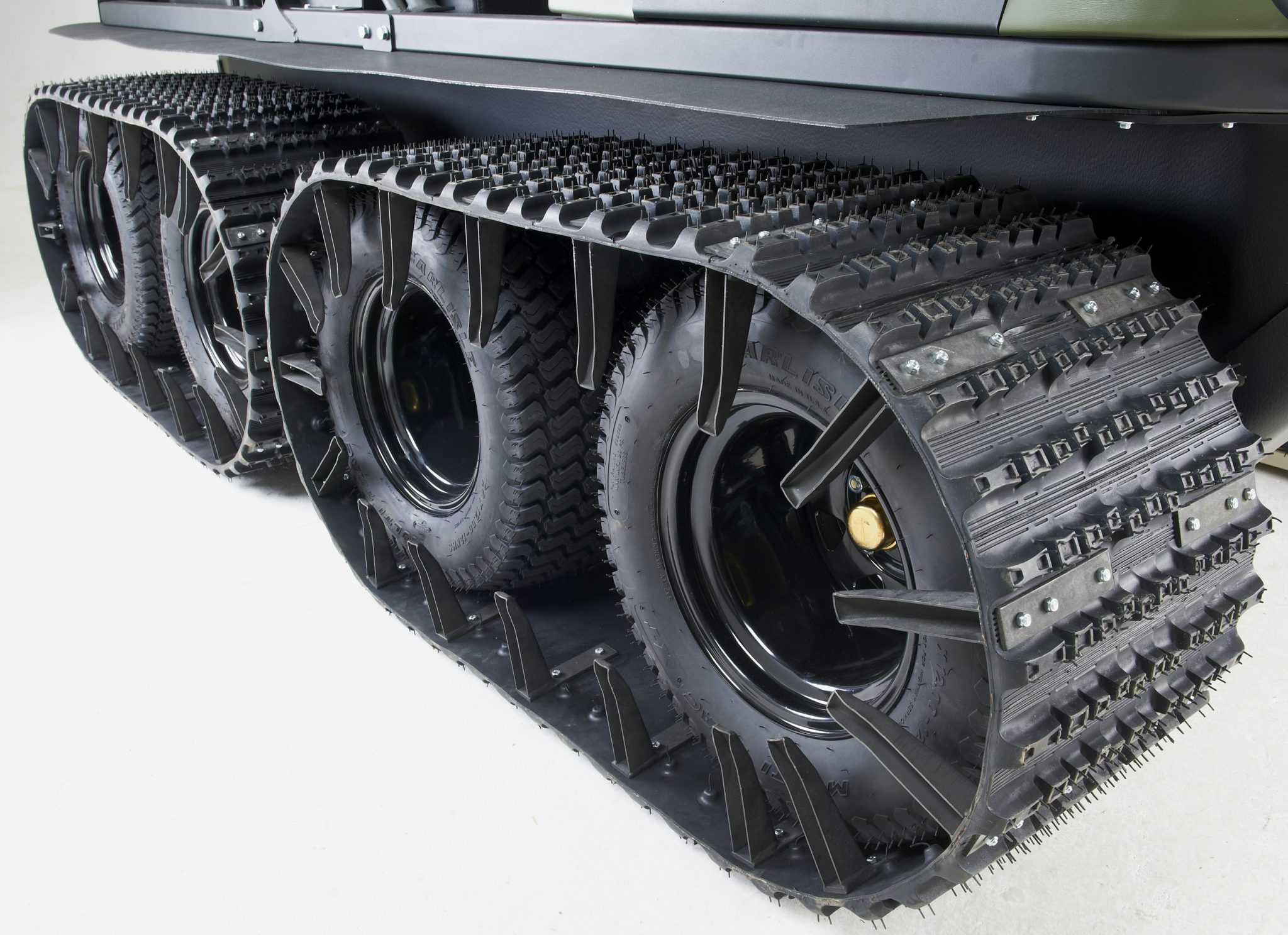

Ground Pressure  Tires 7 psi (48.3 kPa) or less Optional 15″ track 1.82 psi (12.4 kPa) or less Optional 18″ track 1.0 psi (6.8 kPa) or less
Ground Clearance   9″ (228 mm) @ centre of vehicle
Operating Conditions  All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
Dimensions
