8×8 750 HDi

8×8 750 HDi

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 748cc, 30 hp (22 kW) Kohler Aegis LH 775 engine with electronic fuel injection. It has a load capacity of up to 1150 lb. / 521 kg on land or 1000 lb. / 454 kg on water, can transport 6 passengers on land, 4 on water and features towing capacity of 1800 lb. / 816 kg.

8×8 750 HDi Overview

The ultimate machine for those who don’t like compromise solutions! This ARGO  has it all – the powerful yet quiet liquid cooled, fuel injected engine, the efficient ADMIRAL steering transmission and the large 25” (635 mm) wheels combine to give this machine great top speed handling and best in class extreme terrain capability while carrying its full payload. It is equally well suited for hard work as for hard play. Rubber tracks are available for better traction in soft terrain or snow.

8×8 750 HDi Colors

Colors

8×8 750 HDi Features

• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Optional high torque transmission for extreme terrain performance
• Increased steering efficiency for more and constant power to the wheels
• Electronic Fuel Injection provides:
1. Increased fuel efficiency
2. Reliable cold weather starting
3. Improved high altitude performance
4. On-board diagnostics
• Large rear cargo capacity
• Long wheel base for increased ride comfort over rough terrain
• Large triple-sealed outer axle bearings
• Front and rear bearing extensions
• Full skid plate for lower body protection
• 8-wheel traction with low centre of gravity for extra stability
• 25″ (635 mm) ARGO tires with proprietary tread design
• Electronic ignition

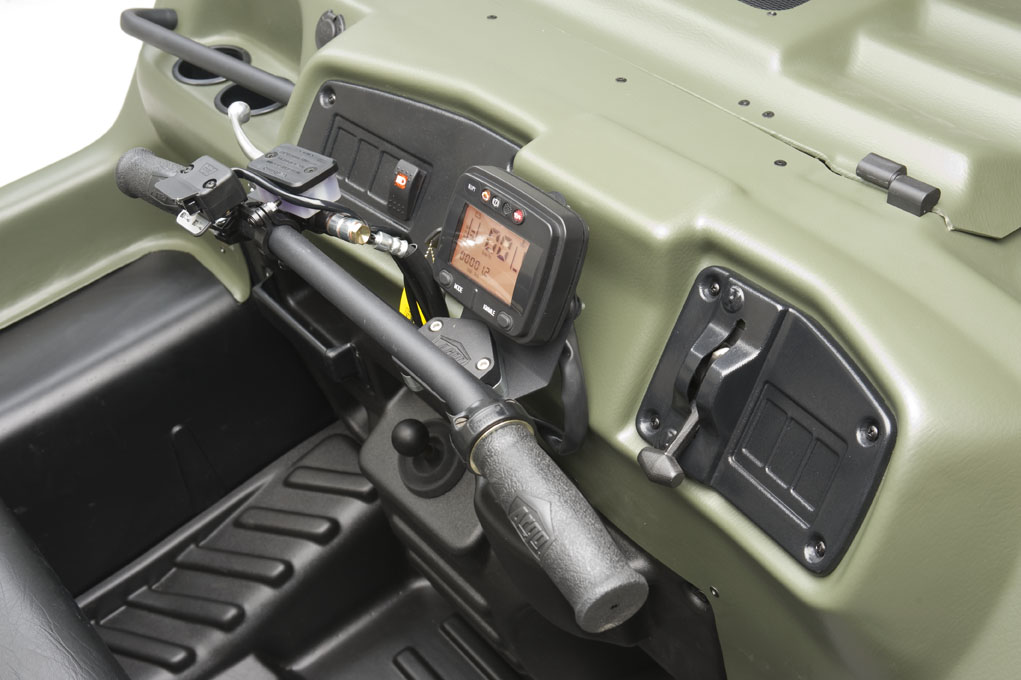

• Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, low oil pressure, parking brake reminder lights and check engine light)
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Three-year limited engine warranty
• Ride friendly seats
• USB Power Outlet
• Entry Step

8×8 750 HDi Specs

Engine 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty
Model Kohler Aegis LH775
Horsepower 30 (22 kW)
Displacement 748cc
Cooling Liquid Cooled
Starting Electric
Brakes Hydraulic
Steering One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO two mode steering for increased efficiency and increased agility.
Controls Right-hand twist grip throttle. Light switch and ignition switch.
Clutch Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse.
Drive System Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greasable.
Frame Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection.
Body Vacuum formed High Molecular Weight Polyethylene.
Full Skid Plate Standard
Load Capacity – On Land 1150 lb. / 521 kg total
Load Capacity – On Water 1000 lb. / 454 kg total
Towing Capacity 1800 lb. / 816 kg
Seating Capacity – On Land 6 persons
Seating Capacity – On Water 4 persons
Fuel Capacity 7.1 Us gallons (27 litres) See-through polyethylene fuel tank. 8 hours of operation.
Speed (on land) 20 mph / 32 km per hour
Speed (on water) 3 mph / 5 km per hour
Shipping Weight 1260 lb. / 572 kg
Axle Bearing Extensions Front Standard
Axle Bearing Extensions Rear Standard
LCD Digital Gauge Cluster Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Engine Coolant Temperature, Low Oil Pressure, Parking Brake Reminder lights and Check Engine Light.
Tires ARGO AT189 25×12.00-9 NHS
Ground Pressure 1.7 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks
Ground Clearance Tires 9.5″ (240 mm)
Ground Clearance Tracks 11″ (279 mm)
Operating Conditions All weather, all terrain, -40C to +40C
Dimensions
