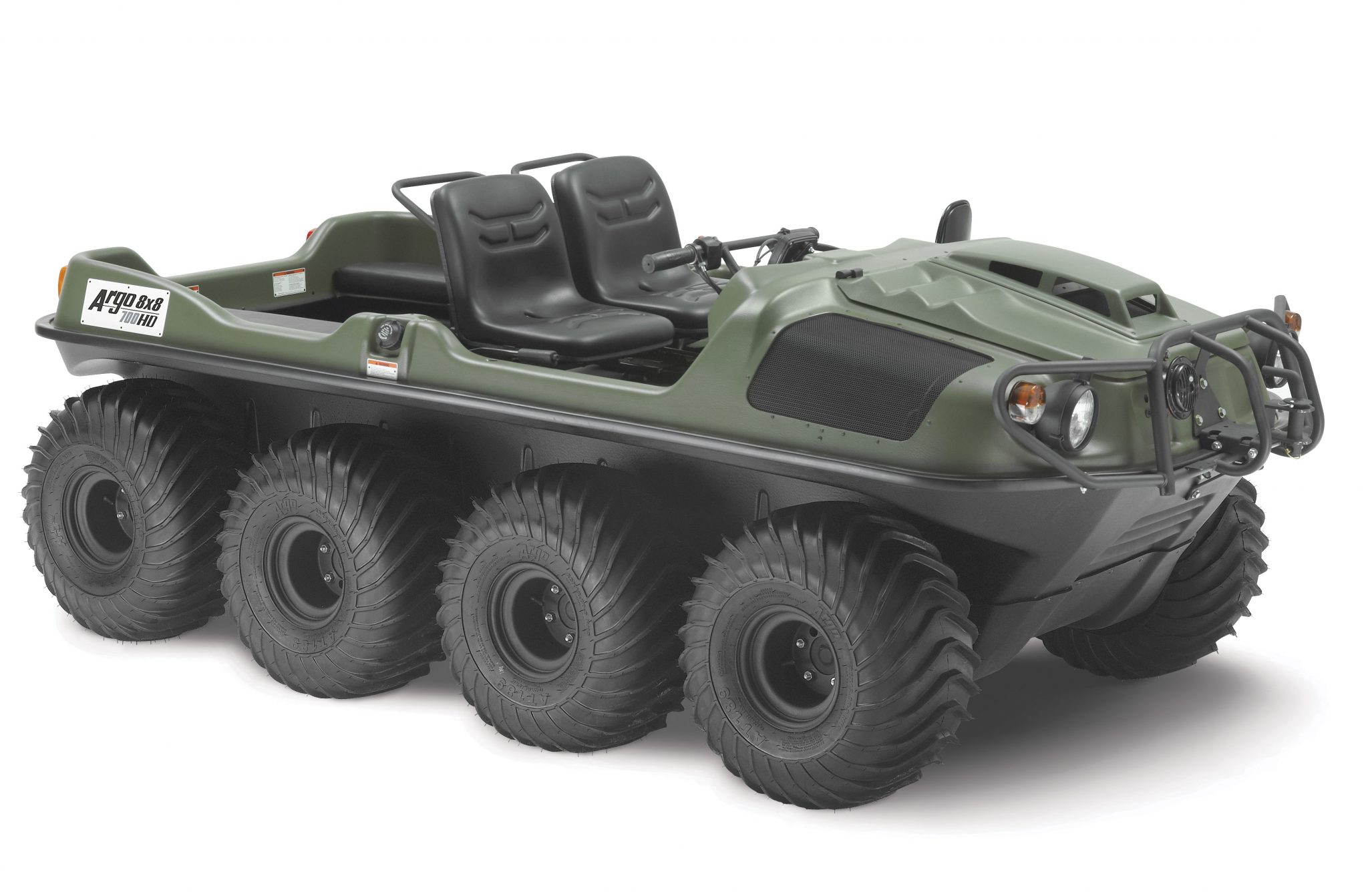

This 8-wheel drive amphibious off-road vehicle is powered by a 4-stroke OHV V-Twin liquid cooled 674cc, 24 hp (17 kW) Kohler Aegis LH 690 engine. It has a load capacity of up to 1000 lb. / 454 kg on land or 850 lb. / 386 kg on water, can transport 2 passengers on land/water and features towing capacity of 1,800 lb. / 816 kg. European Union Road Approved.
ARGOs are designed as extreme terrain and amphibious vehicles, but sometimes have to operate on roads as well. This Argo fulfills all the requirements to be licensed as a road vehicle anywhere in the European Union. The ADMIRAL transmission makes this machine a joy to drive. After crossing the road, it is easy to control running at top speed on a gravel road, yet it can haul big loads through extreme terrain and water. Rubber tracks are available for better traction in soft terrain or snow.
• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Optional high torque transmission for extreme terrain performance
• Increased steering efficiency for more and constant power to the wheels
• 3-way adjustable suspension seating with rear grab handles

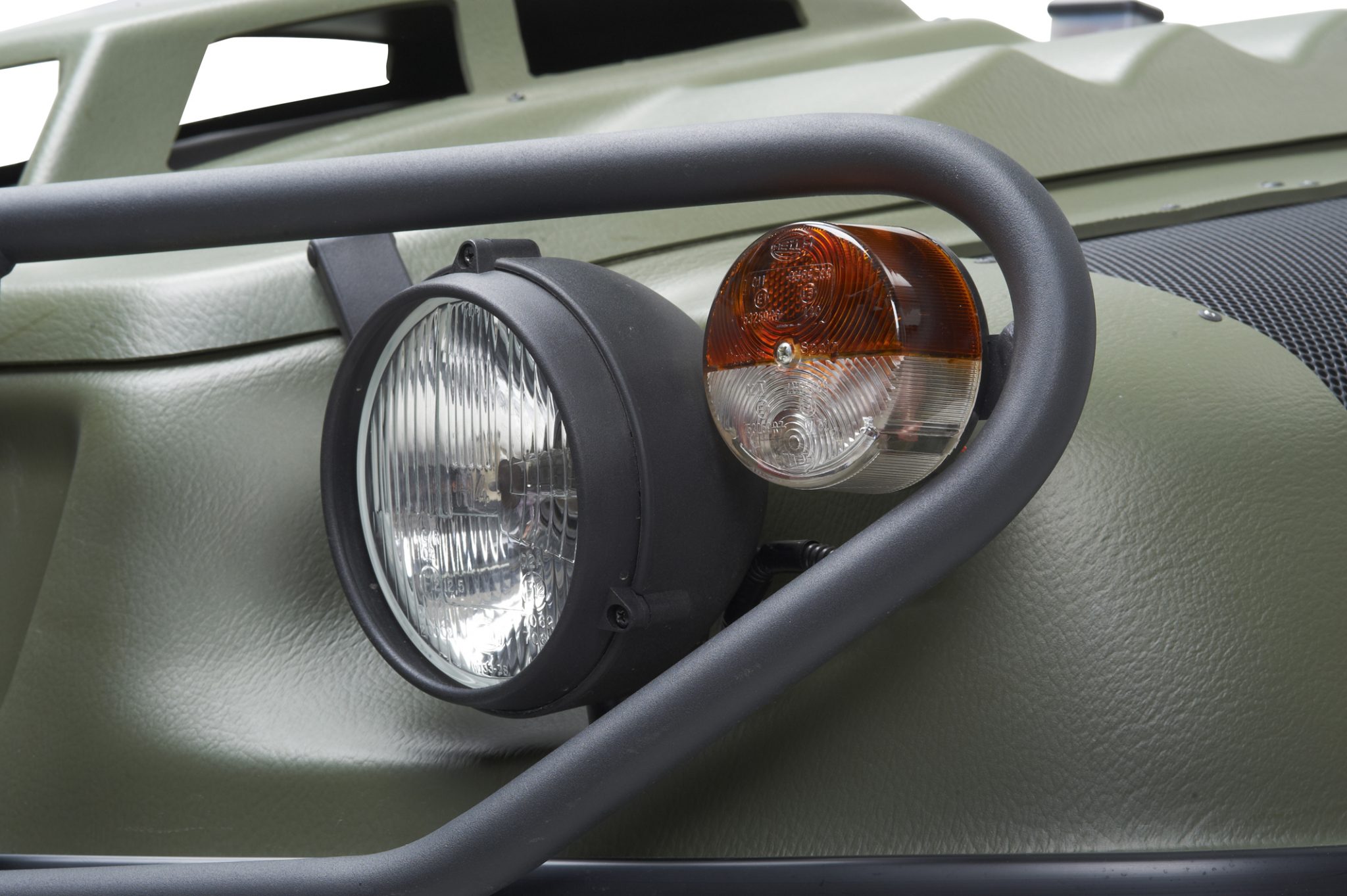

• High / low beam headlights
• Signal / side marker lamps
• Front-mounted horn

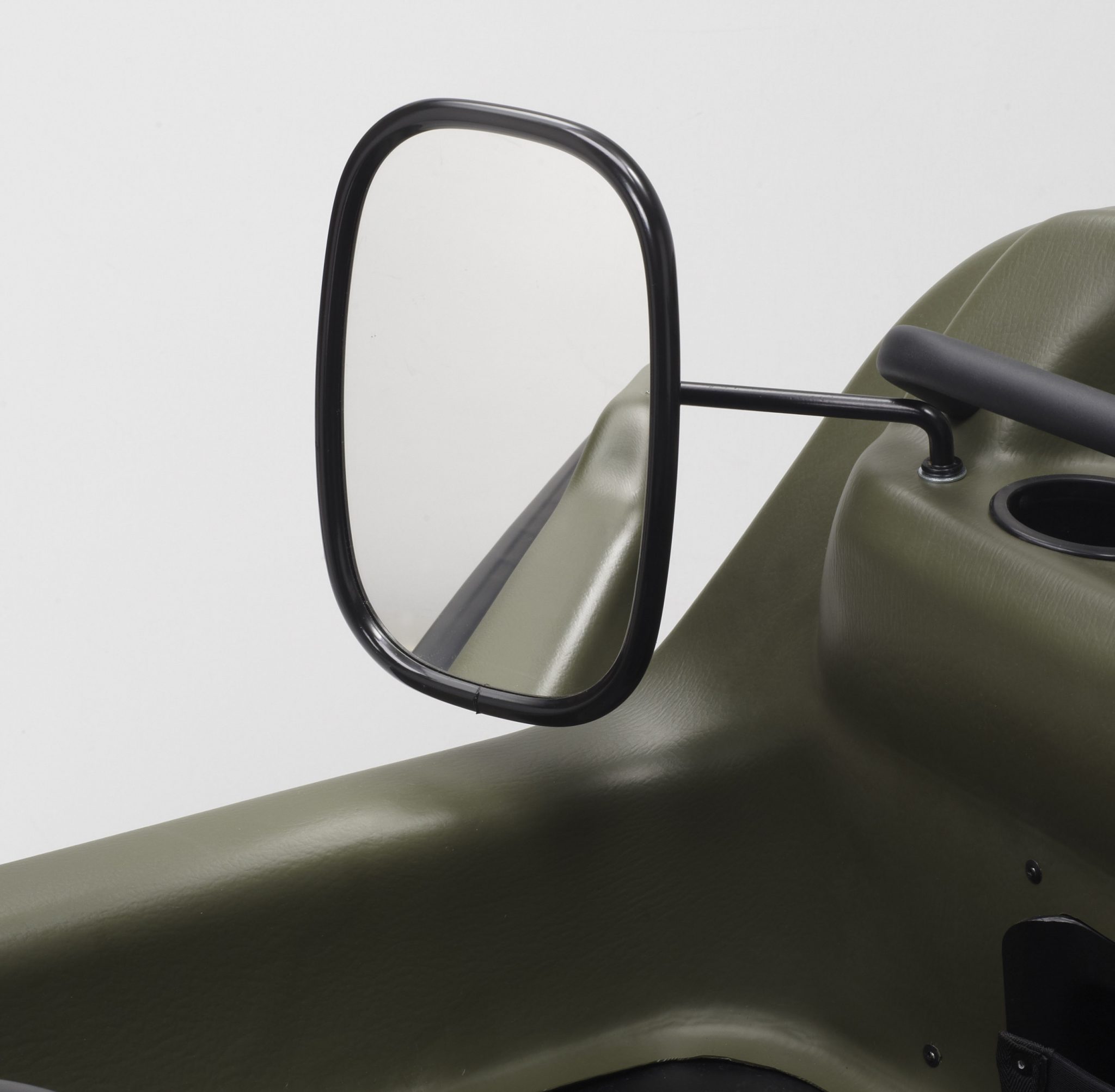

• Side view mirror

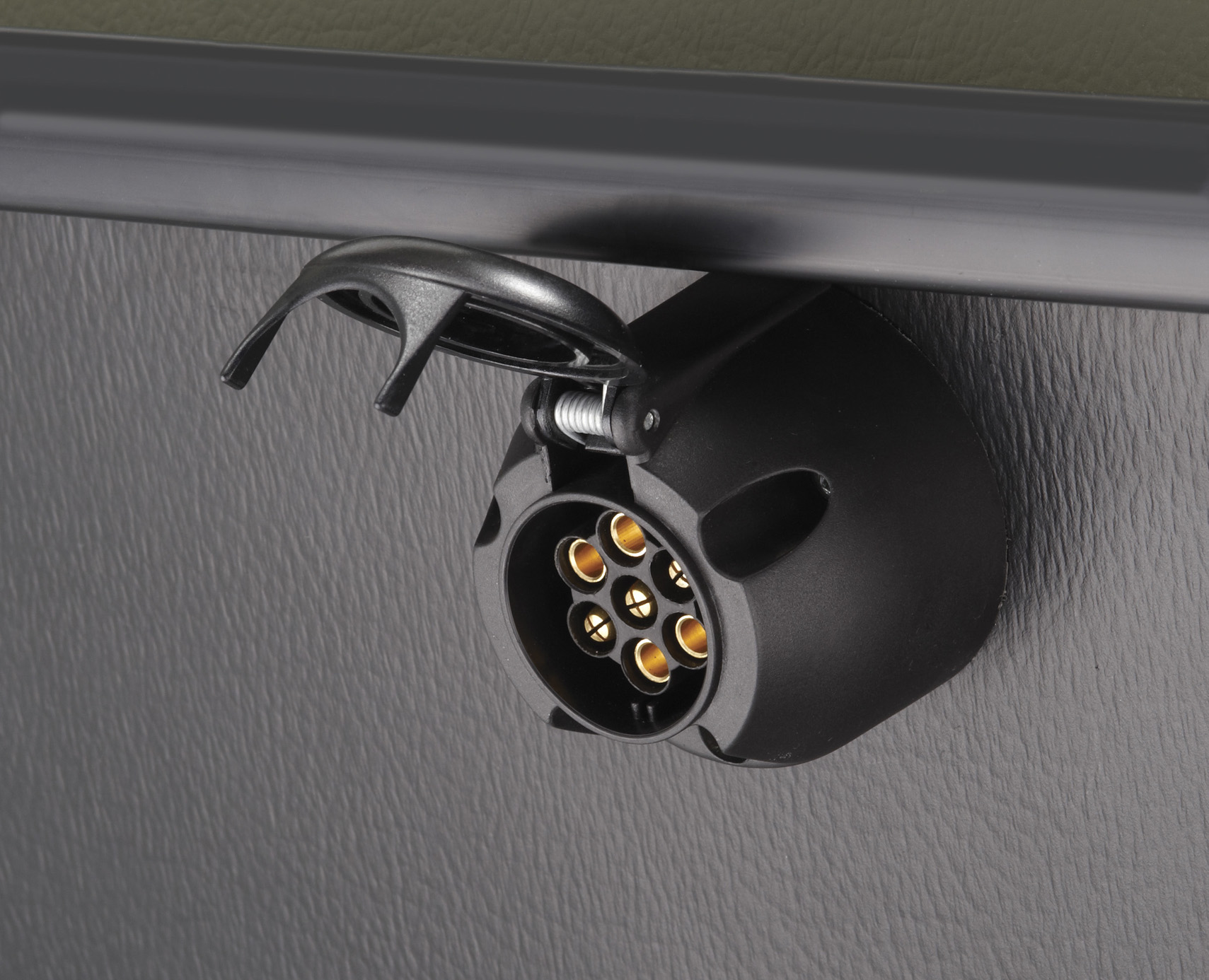

• 7-pin electrical trailer connection
• Heavy duty alternator

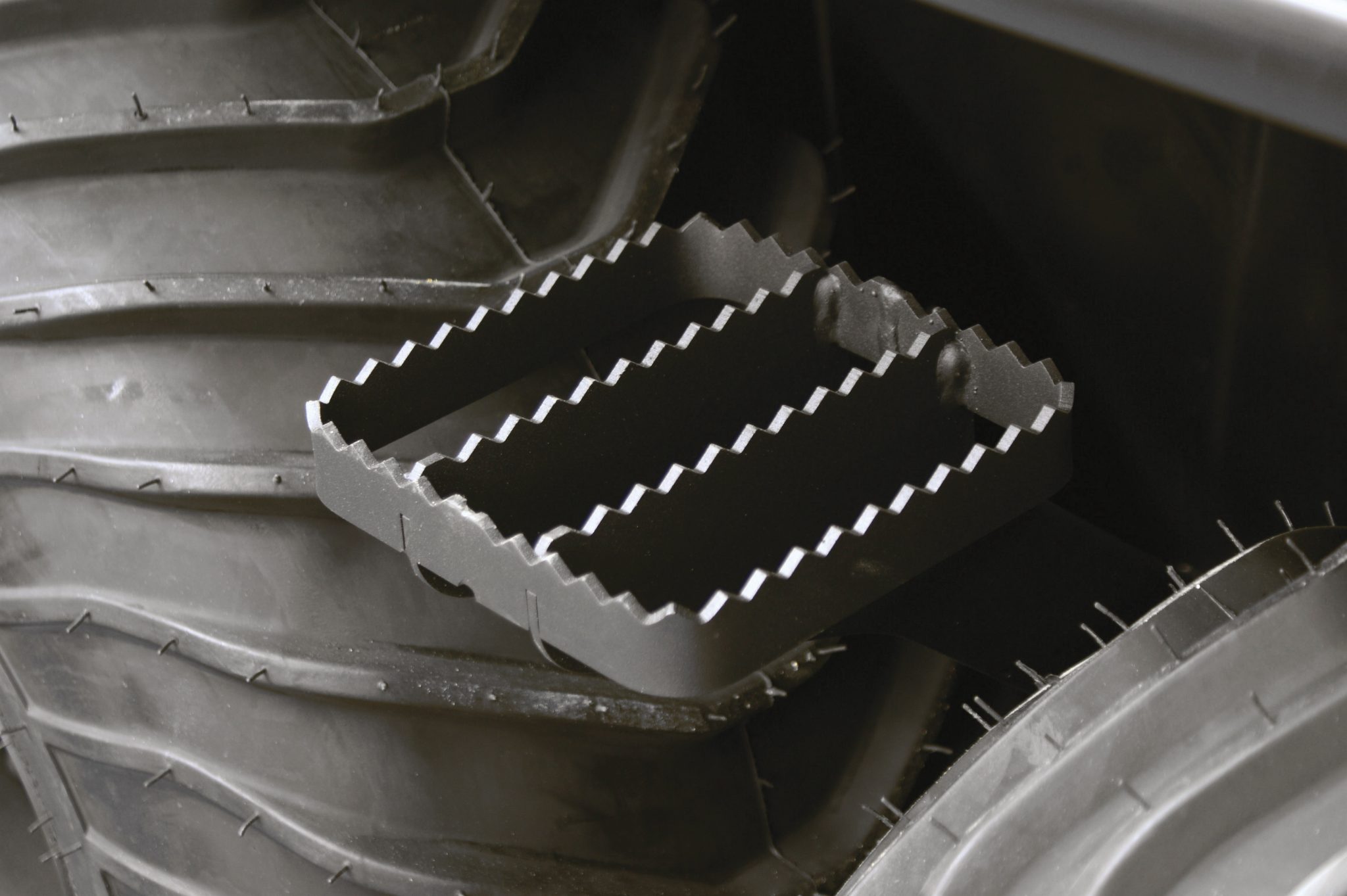

• Entry step

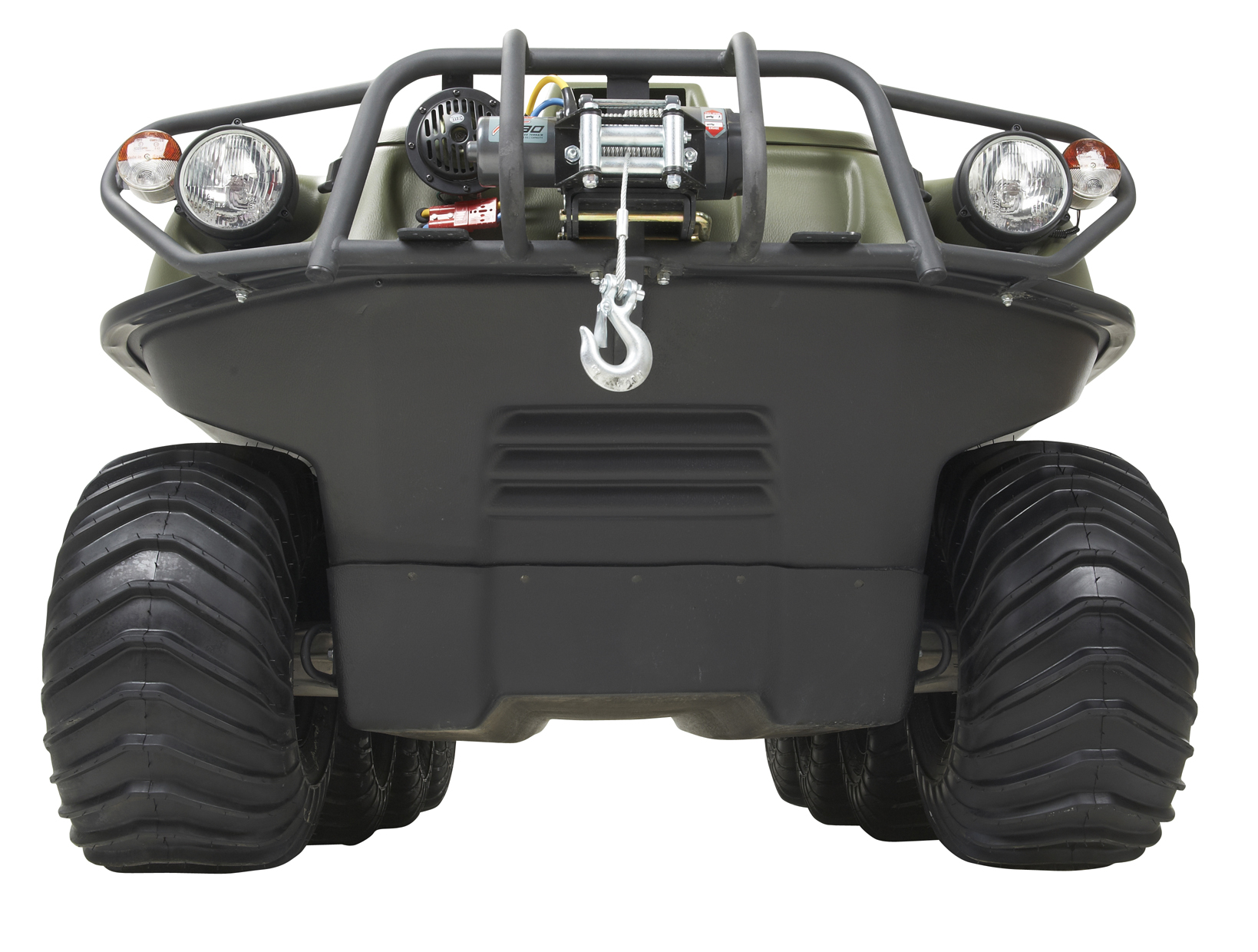

• Brush guard
• Front hitch
• Large rear cargo capacity
• Long wheel base for increased ride comfort over rough terrain
• Large triple-sealed outer axle bearings
• Front and rear bearing extensions
• Full skid plate for lower body protection
• 8-wheel traction with low centre of gravity for extra stability
• 25″ (635 mm) ARGO tires with proprietary tread design
• Electronic ignition

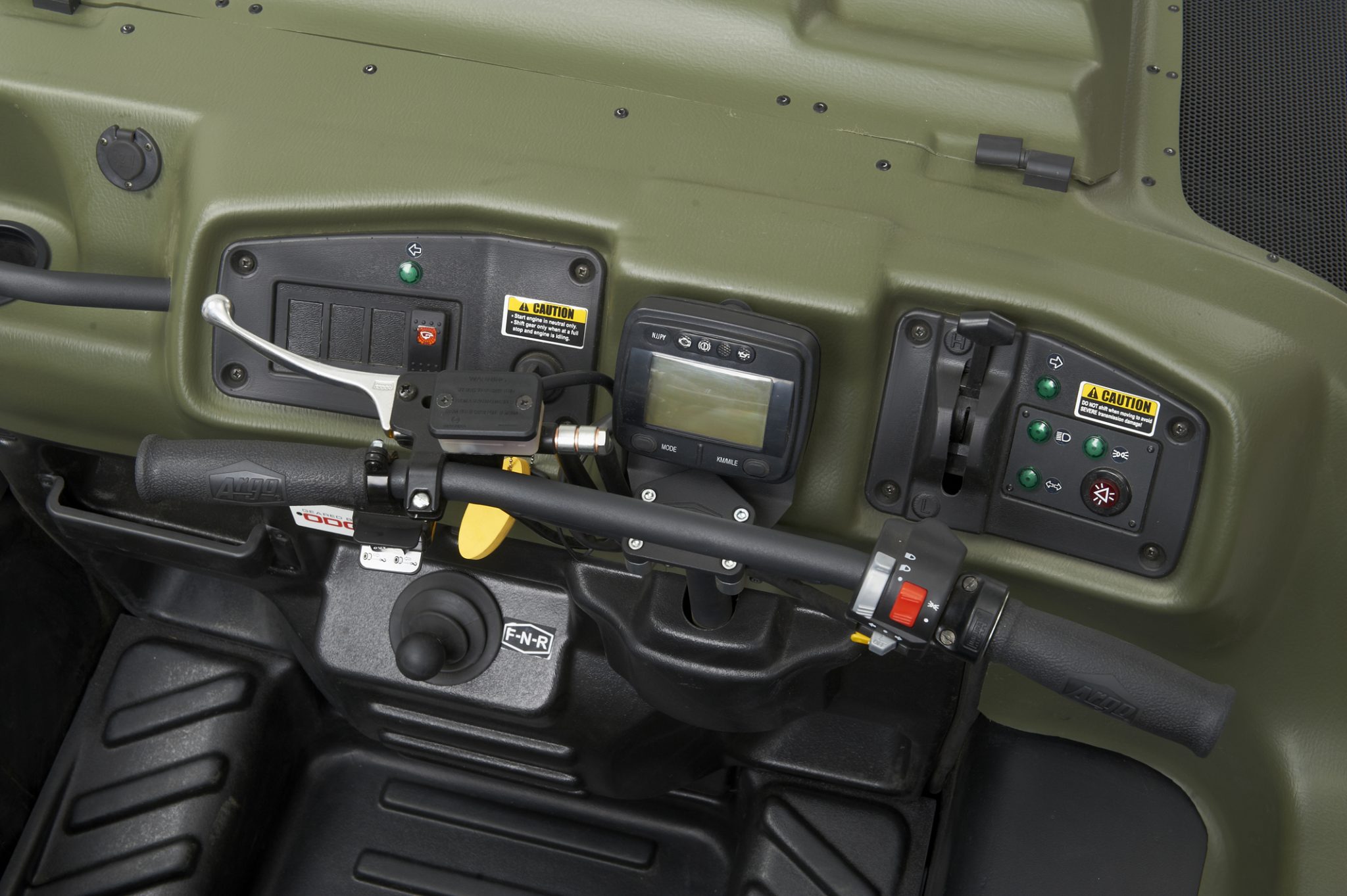

• Digital Gauge Cluster (speedometer, tachometer, odometer, voltmeter, hour meter, engine coolant temperature, low oil pressure and parking brake reminder lights)
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Three-year limited engine warranty
| Engine | 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty |
| Model | Kohler Aegis LH 690 |
| Horsepower | 24 (17 kW) |
| Displacement | 674cc |
| Cooling | Liquid Cooled |
| Starting | Electric |
| Brakes | Hydraulic |
| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse. |
| Drive System | Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greasable. |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene. |
| Full Skid Plate | Standard |
| Load Capacity – On Land | 1000 lb. / 454 kg total |
| Load Capacity – On Water | 850 lb. / 386 kg total |
| Towing Capacity | 1400 lb. / 635 kg |
| Seating Capacity | 2 persons (Driver plus 1 passenger) |
| Fuel Capacity | 27 liters see-through polyethylene fuel tank. 8 hours of operation. |
| Speed (on land) | 32 Km/h (20 mph) |
| Speed (on water) | 3 mph/5 km per hour (with ARGO AT189 tires) |
| Shipping Weight | 1410 lb. / 640 kg |
| Axle Bearing Extensions Front | Standard |
| Axle Bearing Extensions Rear | Standard |
| LCD Digital Gauge Cluster | Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Engine coolant temperature, Low oil pressure, Parking brake reminder light. |
| Tires | ARGO 25×12.00-9 NHS |
| Ground Pressure | 14.5 Kpa using tires 4.6 Kpa using tracks. |
| Ground Clearance Tires | 240 mm (9.5″) |
| Ground Clearance Tracks | 265 mm (10.5″) |
| Operating Conditions | All weather, all terrain, -40C to +40C |
