This 6-wheel drive amphibious off-road vehicle is powered by a 4 stroke OHV V-Twin air cooled 747cc, 23hp (17.2 kW) Kohler Command Pro engine. It has a load capacity of up to 700 lb. / 317 kg on land or 500 lb. / 227 kg on water, can transport 4 passengers on land, 2 on water and features a towing capacity of 1,400 lb. / 635 kg. Rear seat weight restriction of 140 lb. / 63 kg applies.
A powerful, top-of-the-line, ARGO 6×6 extreme terrain vehicle for challenging terrain, deep mud, flooded areas and snow. For even better performance rubber tracks are available. State-of-the-art triple differential steering transmission provides a smooth ride, easy turns and quick response to overcome obstacles when it counts. Best in category towing capacity allows transporting all the gear you need.
• Innovative triple-differential ADMIRAL transmission with independent steering brakes
• Increased steering efficiency for more and constant power to the wheels
• Large triple-sealed outer axle bearings
• Front and rear bearing extensions
• Full skid plate for lower body protection
• 6-wheel traction with low centre of gravity for extra stability
• Electronic ignition
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Ride friendly seats
• USB Power Outlet
• Entry Step
| Engine | 4 cycle OHV V-Twin gasoline engine,electronic ignition,full pressure lubrication and oil filter, 2 year engine warranty |
| Model | Kohler Command Pro |
| Horsepower | 23 (17.2 kW) |
| Displacement | 747cc |
| Cooling | Air cooled |
| Starting | Electric |
| Brakes | Hydraulic |

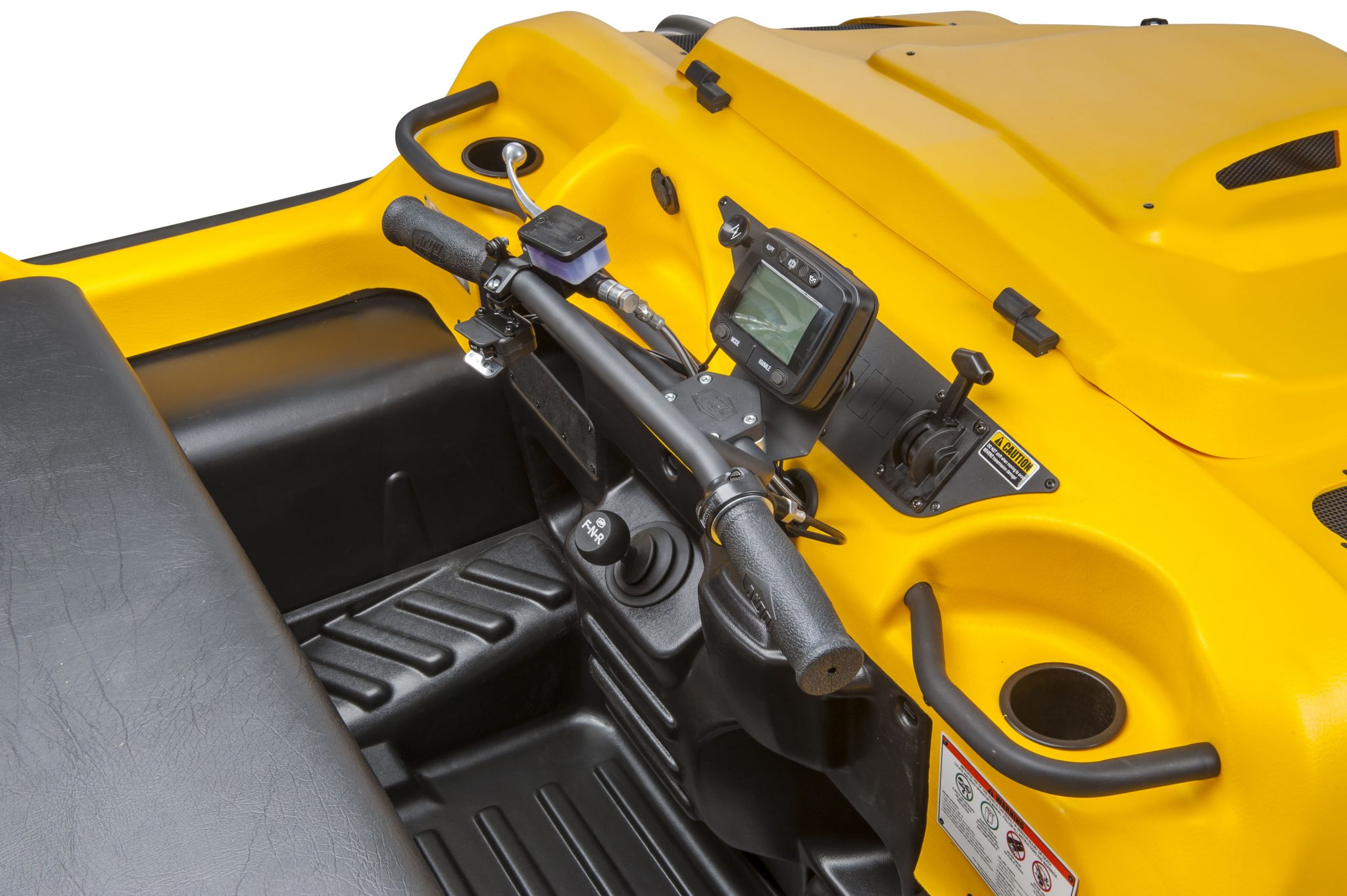

| Steering | One-piece ergonomic handlebar steering control with mounted brake lever. For safety and ease of handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | ADMIRAL triple differential steering transmission with dedicated Hi and Low selector; Forward, Neutral, Reverse. |
| Drive System | Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles.Bearings are greaseable and are protected with double-sealed outer flange assemblies. |
| Frame | Formed steel channel construction,welded for high strength and durability. Polyester powder coated for lasting protection. |
| Body | Vacuum formed High Molecular Weight Polyethylene |
| Full Skid Plate | Standard |
| Load Capacity – On Land | 700 lb. / 317 kg total |
| Load Capacity – Rear Compartment | 140 lb. / 63 kg max. |
| Load Capacity – On Water | 500 lb. / 227 kg total |
| Towing Capacity | 1400 lb. / 635 kg |
| Seating Capacity | 4 persons on land, 2 persons on water |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions. |
| Speed (on land) | 22 mph / 35 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 950 lb. / 431 kg |
| Axle Bearing Extensions | Front and Rear Standard |
| Instrumentation | LCD Digital Gauge Cluster, Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Tires | ARGO 24 x 10.00-8 NHS |
| Ground Pressure | 7.1 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks |
| Ground Clearance Tires | 9.5 inches – 240 mm |
| Ground Clearance Tracks | 10.5 inches – 265 mm |
| Operating Conditions | All weather,all-terrain,-40°C to +40°C |
| Dimensions |  |
