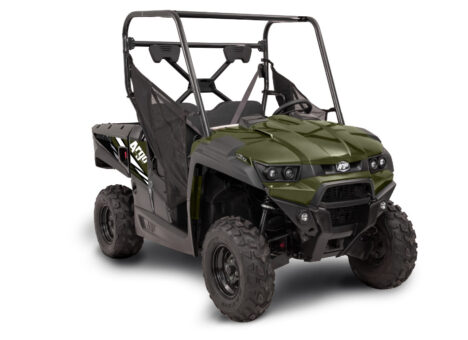

Although it’s not amphibious like Argo’s signature XTV’s, the Magnum XF 500 side by side has the same spirit. With an automatic CVT transmission and a powerful 443cc liquid-cooled engine, this SxS is both easy and fun to drive. Independent front and rear double A-arm suspension allows the Magnum to roll casually over rough terrain. The rear cargo box has a tilt-assist shock that allows you to carry and dump whatever you need to haul. Check out the full list of features below!
| DISPLACEMENT | 443CC |
| ENGINE STROKE | 4-STROKE |
| CYLINDER ARRANGEMENT | SOHC SINGLE-CYLINDER |
| VALVE CONFIGURATION | 4 VALVE |
| FUEL SYSTEM | EFI |
| COOLING SYSTEM | LIQUID |
| BORE X STROKE | 89 X 71.2 MM |
| COMPRESSION RATIO | 9.1:1 |
| START METHOD | ELECTRIC START |
| IGNITION | ECU |
| OVER RIDE BUTTON | STANDARD |
| TRANSMISSION TYPE | CVT AUTOMATIC |
| FINAL DRIVE | SHAFT DRIVE |
| DIFFERENTIAL FUNCTION | FRONT DIFFERENTIAL |
| DRIVE SYSTEM TYPE | ELECTRONIC 2WD/ 4WD /LOCK |
| ELECTRIC DIFF LOCK | YES |
| GEAR SELECTION | H/L/N/R/P |
| REVERSE | YES |
| ENGINE BRAKING SYSTEM (EBS) | STANDARD |
| LENGTH | 106.3 IN (2,700 MM) |
| WIDTH | 56.7 IN (1,440 MM) |
| HEIGHT | 72.8 IN (1,850 MM) |
| SEAT HEIGHT | 32.9 IN (836MM) |
| GROUND CLEARANCE | 10 IN (254 MM) |
| WHEELBASE | 72 IN (1,829 MM) |
| TOWING CAPACITY | 1,200 LBS (545.5 KG) |
| DRY WEIGHT | 1,025 LBS (465 KG) |
| WET WEIGHT | 1,080 LBS (490 KG) |
| FUEL TANK CAPACITY | 8.5 GAL (32 L) |
| RIDER CAPACITY | 2 |
| SUSPENSION – FRONT | INDEPENDENT DOUBLE A-ARM |
| SUSPENSION – REAR | INDEPENDENT DOUBLE A-ARM |
| SUSPENSION TRAVEL – FRONT | 6.9 IN (176 MM) |
| SUSPENSION TRAVEL – REAR | 6.8 IN (172 MM) |
| BRAKE – FRONT | DUAL HYDRAULIC DISC |
| BRAKE – REAR | HYDRAULIC DISC |
| FOOT BRAKE | YES |
| TIRE SIZE (FRONT) | AT25X8-12 (MAXXIS) |
| TIRE SIZE (REAR) | AT25X10-12 (MAXXIS) |
| WHEEL RIM | STEEL |
| ELECTRIC POWER STEERING | NO |
| BATTERY | MF 18AH |
| FRONT RACK | N/A |
| REAR RACK | N/A |
| FRONT BUMPER | ACCESSORY |
| REAR BUMPER | ACCESSORY |
| HITCH | STANDARD/2″ RECEIVER |
| WINCH | ACCESSORY |
| 12V CHARGER | STANDARD |
| DAYLIGHT STRIP | RUNNING LIGHTS |
| SKID PLATE | PLASTIC |
| PASSENGER HANDLES | YES |
| STORAGE | UNDERHOOD, UNDERSEAT, TAILGATE, GLOVE BOX |
| FRONT BRUSH GUARD | ACCESSORY |
| REAR BUMPER | ACCESSORY |
| USB CHARGING PORT | N/A |
| REAR BOX STORAGE | 441 LB (200 KG) |
| INSTRUMENTATION | DIGITAL INSTRUMENT PANEL WITH ODOMETER, SPEEDMETER, TRIPMETER, RPM, TRANSMISSION POSITION, 2WD/4WD/LOCK INDICATOR, APS INDICATOR, FUEL GAUGE, TEMPERATURE, LOW-BATTERY, HIGH BEAM LIGHT AND CHECK ENGINE LIGHTS |
| LIGHTING | DUAL 12V 35 W HIGH/LOW BEAM DUAL WITH BRAKE LIGHT |
| COLOR | GREEN |
