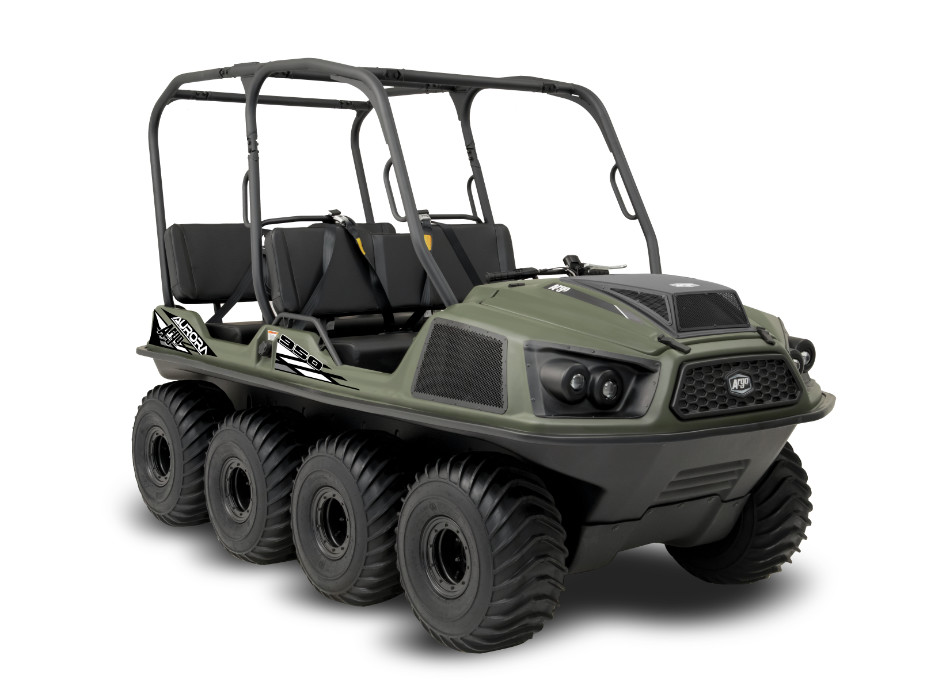

This big Argo 950 R is built for those who want extra protection while driving over extreme terrain. Its signature feature is the certified ROPS (roll-over protection structure) that includes integrated hand holds that riders can use to brace themselves on the trail. Check out all the features and specifications below!
| ENGINE | VX 950 |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | EFI |
| COOLING | FAN COOLED |
| ALTERNATOR OUTPUT (MAX) | 50 AMPS |
| CHASSIS | 8X8 |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | ACCESSORY |
| EASY ACCESS GREASE SYSTEM (EAGS) | STANDARD |
| BRAKE COOLING FAN | ACCESSORY |
| TRANSMISSION | ADMIRAL W/APS |
| DRIVE BELT | STANDARD |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | ACCESSORY |
| WINCH | ACCESSORY |
| FRONT RACK | ACCESSORY |
| CARGO BOX | N/A |
| BILGE PUMP | STANDARD |
| ROPS | STANDARD |
| STRETCHER FRAME | N/A |
| REAR MESH | N/A |
| ROOF | ACCESSORY |
| POWER DUMP BOX | N/A |
| LOAD CAPACITY – LAND | 850 lb (386 kg) |
| LOAD CAPACITY – WATER | 650 lb (295 kg) |
| TOWING CAPACITY | 1,800 lb (816 kg) |
| SEATING CAPACITY – LAND | 4 |
| SEATING CAPACITY – WATER | 2 (WATER FORDING ONLY) |
| FUEL CAPACITY | 8.5 gal (32 L) |
| SPEED – LAND | 25 mph (40 Km/h) |
| SPEED – WATER | WATER FORDING |
| WEIGHT | 1,700 lb (771 kg) |
| LENGTH (includes winch when standard) | 119 in (3,023 mm) |
| WIDTH | 60 in (1,524 mm) |
| HEIGHT | 77 in (1,956 mm) |
| AXLE BEARING EXTENSIONS | STANDARD |
| ENTRY STEP | ACCESSORY |
| TIRES | ARGO XT117 25X12-9 |
| WHEEL | STEEL BEADLOCK |
| GROUND PRESSURE (18″ RUBBER TRACKS) | 0.88 psi (6.1 kPa) |
| GROUND CLEARANCE (TIRES) | 10 in (254 mm) |
| GROUND CLEARANCE (TRACKS) | 11 in (279 mm) |
| WARRANTY | 1 YEAR |

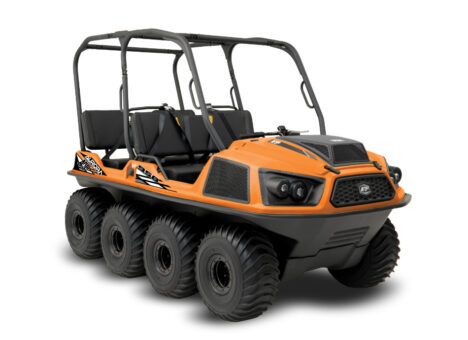

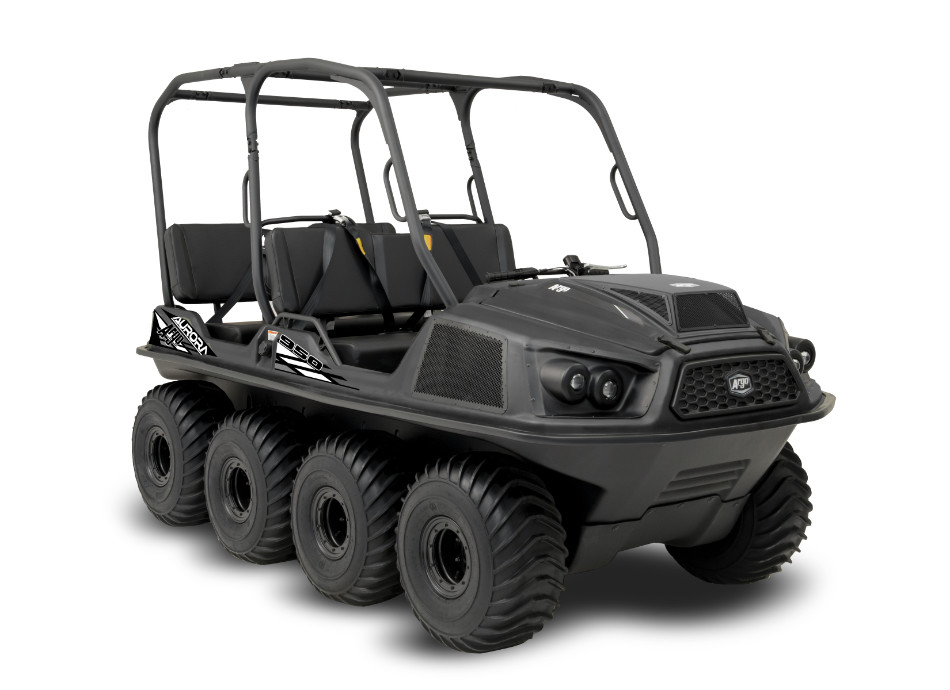

| COLORS | GREEN, BLACK, ORANGE |
