2023 Conquest 950 XT-X

2023 Conquest 950 XT-X

This big XTV is the vehicle of choice for hardworking professionals in many different industries. It is built tough and powerful, has a big VX 950 V-Twin engine, and packs a 1,000 lb. rated power dump box on the back for days when you need to haul things around. A heavy-duty 4,500 lb. winch on the front is always on hand for dragging around whatever needs to be moved. Protection features like the ROPS, roof, and rear safety mesh keep your crew safe in difficult situations. Look below for more detailed specs, or get in touch with the friendly team at Shanks Argo today!

2023 Conquest 950 XT-X Overview

  • VX 950 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quiet Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Roll-Over Protection Structure (ROPS)
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics

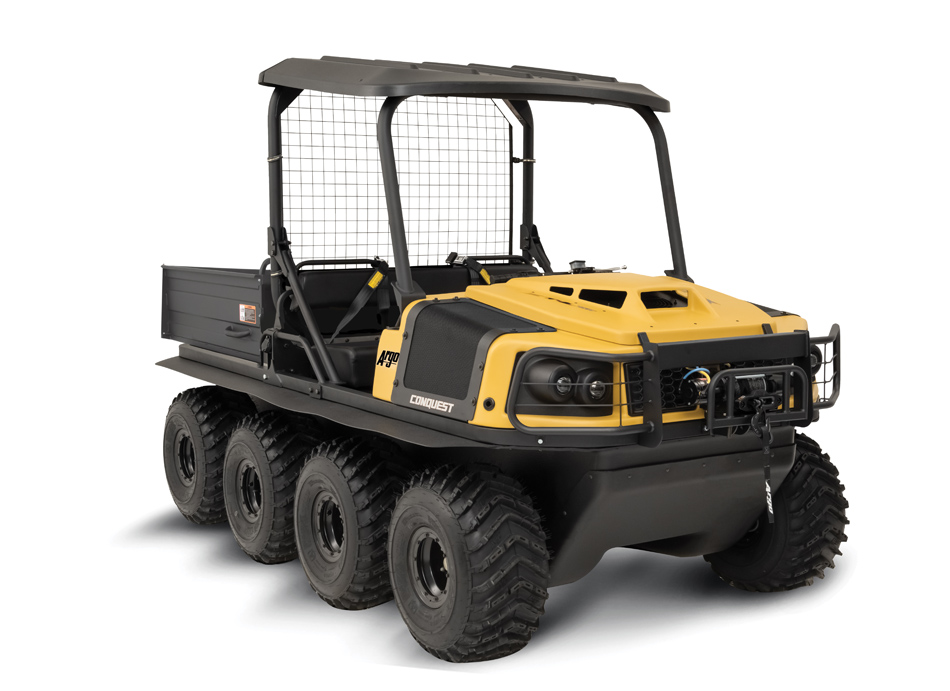

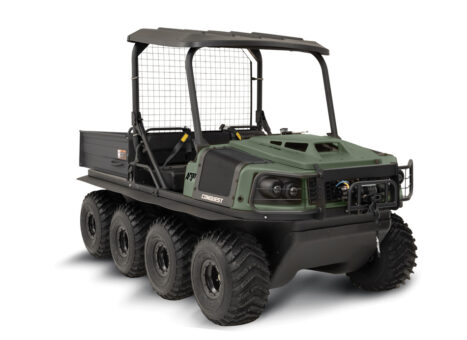

  • Colors: Green, Industrial Yellow

2023 Conquest 950 XT-X Colors

  • Tundra Green
  • Industrial Yellow

2023 Conquest 950 XT-X Specs

ENGINE VX 950
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 50 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS STANDARD
STRETCHER FRAME N/A
REAR MESH STANDARD
ROOF STANDARD
POWER DUMP BOX STANDARD
LOAD CAPACITY – LAND 848 lb (385 kg)
LOAD CAPACITY – WATER NOT AMPHIBIOUS
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER N/A
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 17 mph (27 Km/h)
SPEED – WATER N/A
WEIGHT 2,252 lb (1,021 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW
