2023 Conquest 800 XT

2023 Conquest 800 XT

The Conquest 800 XT comes in two colors: industrial yellow and tundra green. Regardless of the color, however, this Argo is powerful and ready for going to work in hard-to-reach areas of the earth’s crust. Eight big Argo-exclusive mud tires mounted on steel AirLock rims can take you virtually anywhere. The Conquest is fully amphibious and can move smoothly over obstacles with its strong, smooth underbody design. Maintenance is simplified with automatic chain lubrication. A powerful winch and heft brush guard are mounted to the front. Check below for more detailed specs.

2023 Conquest 800 XT Overview

  • KX 800 V-Twin Engine
  • ODG Admiral Transmission
  • Instant Torque Clutch (ITC)
  • Quiet Muffler
  • 25″ Mud Tires
  • 9″ AirLock™ Steel Rims
  • Flat Front Floor
  • Steel Fuel Tank
  • Premium Gauge
  • Dual Hi/Low Projector Beam Headlights
  • Auto Chain Lubrication
  • Oil Bath Hubs
  • Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • Colors: Green, Industrial Yellow

2023 Conquest 800 XT Colors

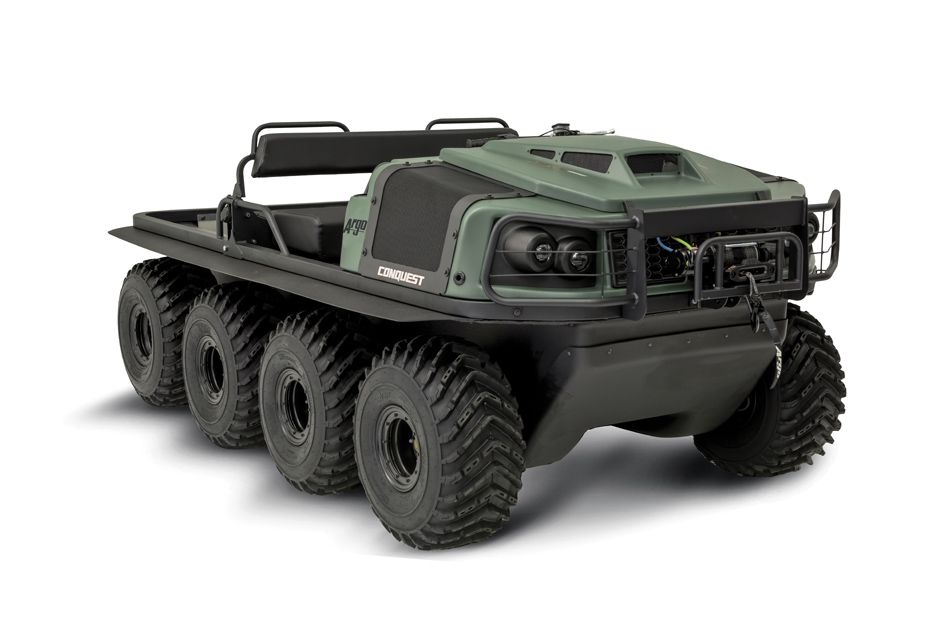

  • Tundra Green

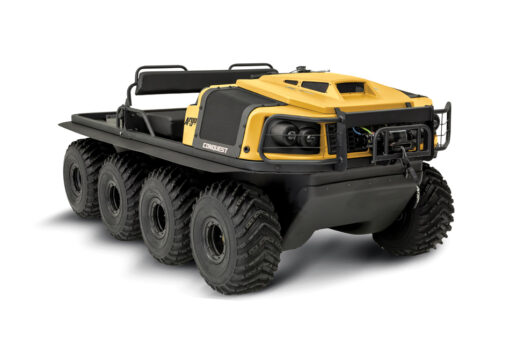

  • Industrial Yellow

2023 Conquest 800 XT Specs

ENGINE KX 800
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 60 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION STANDARD
BRAKE COOLING FAN ACCESSORY
TRANSMISSION ODG ADMIRAL
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 4500 LB WINCH
FRONT RACK ACCESSORY
CARGO BOX NA
BILGE PUMP STANDARD
ROPS ACCESSORY
STRETCHER FRAME N/A
REAR MESH ACCESSORY
ROOF ACCESSORY
POWER DUMP BOX ACCESSORY
LOAD CAPACITY – LAND 1,210 lb (549 kg)
LOAD CAPACITY – WATER 510 lb (231 kg)
TOWING CAPACITY 2,000 lb (907 kg)
SEATING CAPACITY – LAND 2
SEATING CAPACITY – WATER 2
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 12 mph (19 Km/h)
SPEED – WATER N/A
WEIGHT 1,890 lb (857 kg)
LENGTH (includes winch when standard) 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 49 in (1,245 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT119 25X12-9
WHEEL STEEL AIRLOCK
GROUND PRESSURE (18″ RUBBER TRACKS) 1.06 psi (7.3 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, INDUSTRIAL YELLOW
