2022 FRONTIER 650 8X8

2022 FRONTIER 650 8X8

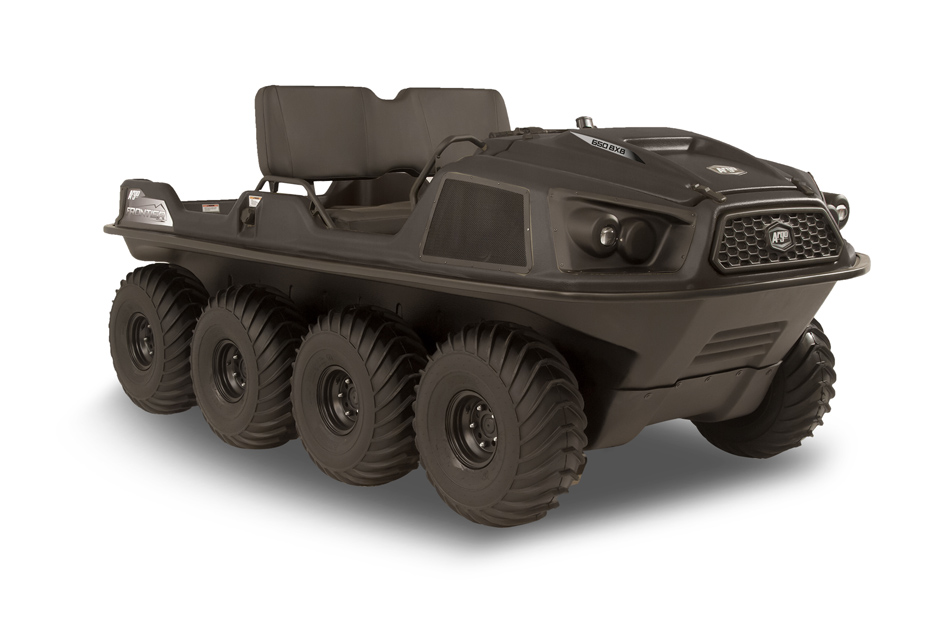

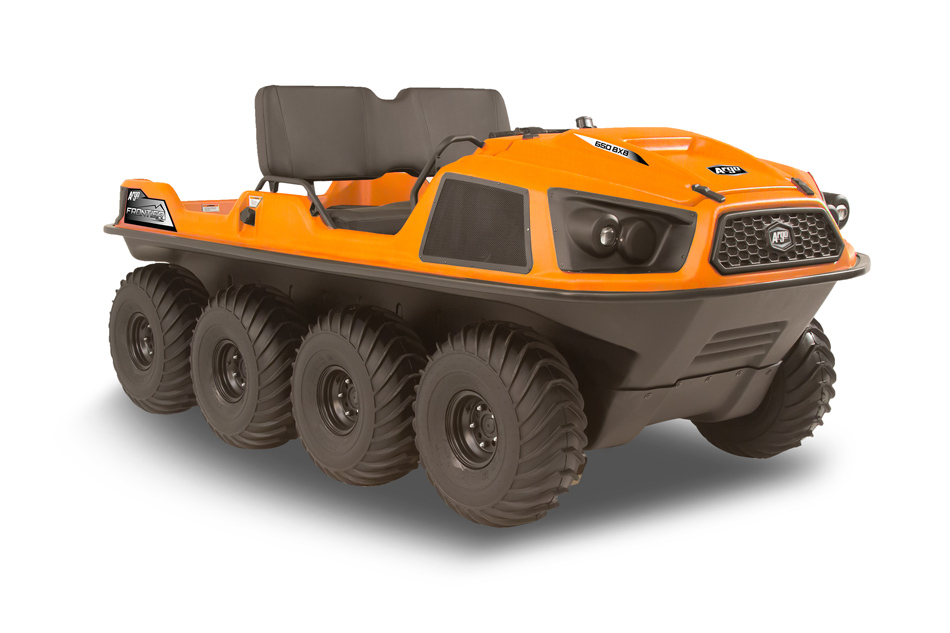

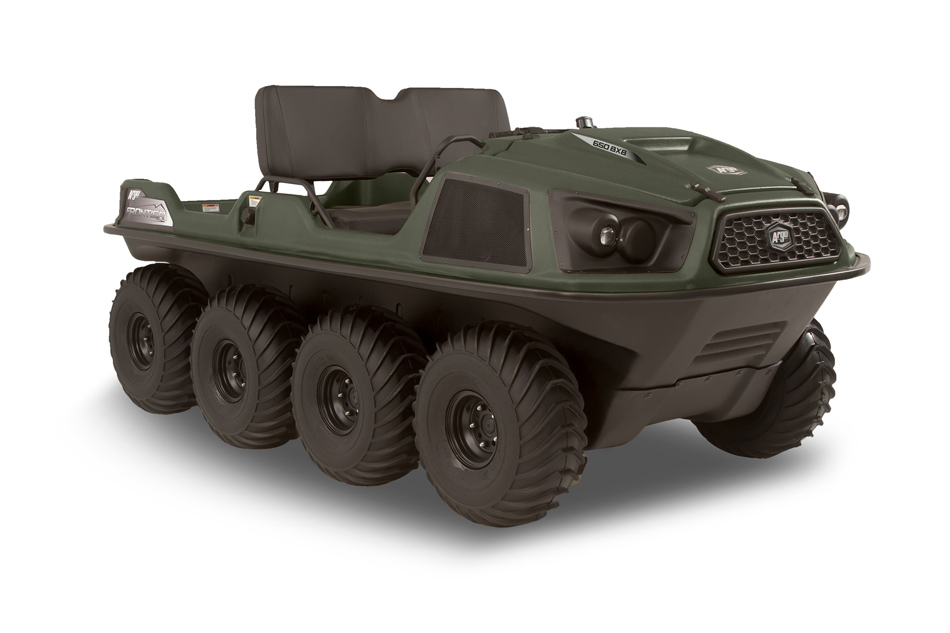

This is the 8-wheeled beast of the Argo Frontier family. With more big tires, the Frontier 8×8 has better stability and more go-anywhere drive. The 650 crawls with the power of a 23 horsepower carbureted V-twin engine. It stalks across land or water on its 8″ steel offset rims and 24″ tires, steering smoothly with all eight wheels and Argo Progressive Steering. A big 8.5 gallon fuel tank keeps you going on longer trails, and a new deluxe display gauge includes a fuel level display to keep you aware of how much gas you’ve got left. The Frontiers come in three color options: green, orange, or black.

2022 FRONTIER 650 8X8 Overview

  • 650 Series (23HP Carb)
  • Classic Transmission
  • ARGO Progressive Steering (APS)
  • New Instant Torque Clutch (ITC)
  • New Quieter Muffler
  • 24″ Tires
  • 8″ Steel Offset Rims
  • Rear Side Seats
  • Front Flat Floor
  • New 8.5 gal Steel Fuel Tank
  • New Fuel Level Display on Deluxe Gauge
  • Single Low Projector Beam Headlights
  • New Hi-Vis LED Brake/Taillights
  • HDPE Body Plastics

2022 FRONTIER 650 8X8 Colors

  • Green
  • Orange
  • Black

2022 FRONTIER 650 8X8 Specs

HORSEPOWER 23HP
CYLINDER V-TWIN
FUEL SYSTEM CARBURETOR
COOLING FAN COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
AUTO CHAIN LUBRICATION ACCESSORY
BRAKE COOLING FAN STANDARD
TRANSMISSION CLASSIC W/APS
DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD ACCESSORY
WINCH ACCESSORY
FRONT RACK ACCESSORY
BILGE PUMP STANDARD
ROPS N/A
STRETCHER FRAME ACCESSORY
REAR MESH N/A
ROOF N/A
POWER DUMP BOX N/A
LOAD CAPACITY – LAND 855 lb (388 kg)
LOAD CAPACITY – WATER 755 lb (342 kg)
TOWING CAPACITY 1,200 lb (544 kg)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 8.5 gal (32 L)
SPEED – LAND 16 mph (26 Km/h)
SPEED – WATER 3 mph (5 Km/h)
WEIGHT 1,195 lb (542 kg)
LENGTH (includes winch when standard) 119 in (3,023 mm)
WIDTH 58 in (1,473 mm)
HEIGHT 51 in (1,295 mm)
AXLE BEARING EXTENSIONS N/A
ENTRY STEP ACCESSORY
TIRES ARGO XT1 15 24X10-8
RIMS STEEL OFFSET
GROUND PRESSURE (18″ RUBBER TRACKS) 0.73 psi (5 kPa)
GROUND CLEARANCE (TIRES) 9 in (228 mm)
GROUND CLEARANCE (TRACKS) 10 in (254 mm)
WARRANTY 1 YEAR
COLORS GREEN, BLACK, ORANGE
