2021 FRONTIER 600 6X6

2021 FRONTIER 600 6X6

The Frontier 600 6×6 is where the Argo XTV lineup begins. It’s a good place to begin. Although this 6-wheeled Argo is smaller than its 8-wheeled siblings, it is has a heart of solid Argo. The Argo Progressive Steering (APS) system syncs with Argo’s Classic transmission for smooth, precise handling over literally any terrain. The engine is Argo’s 600 series V-twin engine and packs 18 horsepower of fun and function. The six 24” tires are mounted to 8” steel offset rims. A deluxe guage lets you keep track of everthing while you’re in the driver’s seat and the low projector beam headlights keep you on track and on trail before the sun’s up and after it’s down.

2021 FRONTIER 600 6X6 Overview

  • 600 Series (18HP) V-Twin Engine
  • Classic Transmission with APS
  • 24" XT115 Tires
  • 8" Steel Offset Rims
  • Rear Side Seats
  • Front Flat Floor
  • Single Low Projector Beam Headlights
  • Deluxe Gauge
  • HDPE Body Plastics

2021 FRONTIER 600 6X6 Colors

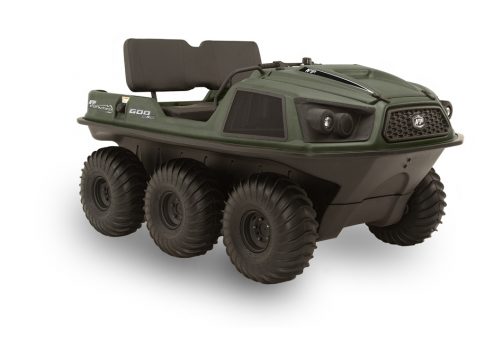

  • Green

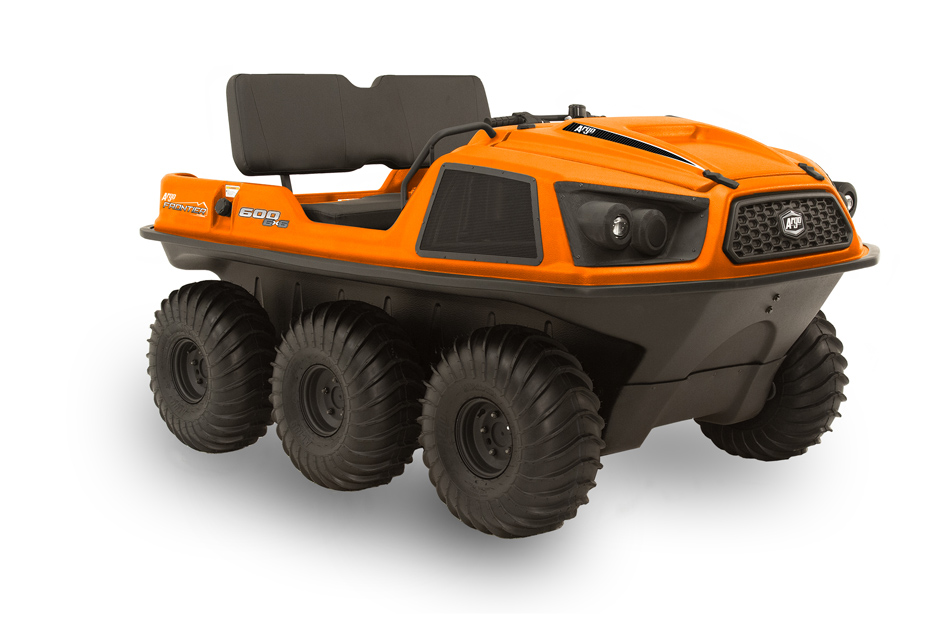

  • Orange

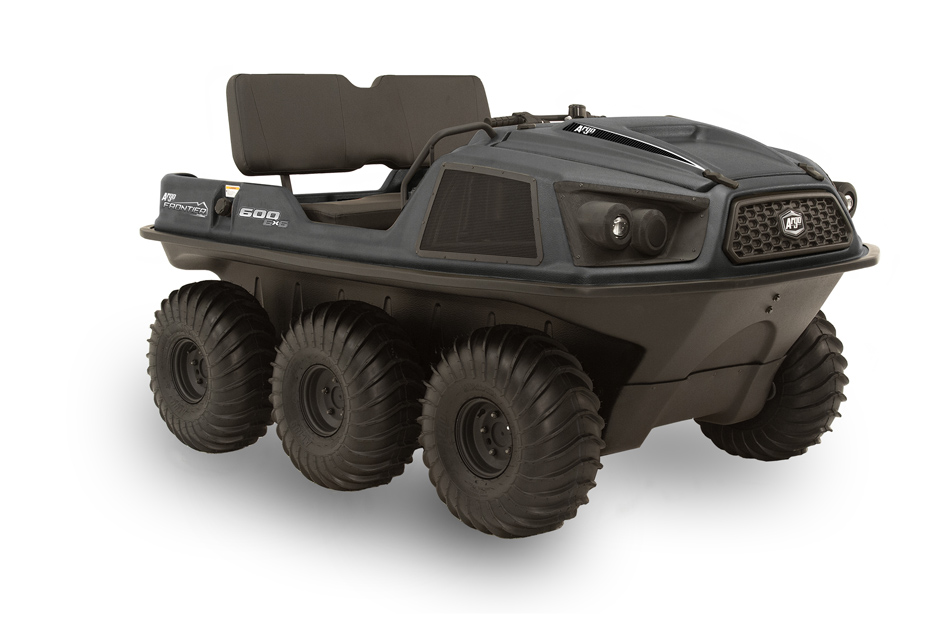

  • Black

2021 FRONTIER 600 6X6 Specs

DISPLACEMENT 570 cc
CYLINDER V-Twin
FUEL SYSTEM Carburetor
COOLING Fan Cooled
ALTERNATOR OUTPUT (MAX) 20 Amps
HP 18HP
RIMS Steel off-set
TIRES Argo XT115 24×10-8
GROUND PRESSURE WITH 18” RUBBER TRACKS 0.73 psi (5 kPa)
GROUND CLEARANCE – TIRES 10 in (254 mm)
GROUND CLEARANCE – TRACKS 11 in (279 mm)
TRANSMISSION Classic w/APS
TRANSMISSION OPTION ST
DRIVE BELT Standard
SERVICE BRAKES Hydraulic
STEERING BRAKES Hydraulic
BRAKE COOLING FAN N/A
LENGTH 96 in (2,438 mm)
WIDTH 58 in (1,473 mm)
HEIGHT 51 in (1,295 mm)
LOAD CAPACITY – LAND 595 lb. (270 kg)
LOAD CAPACITY WATER 395 lb. (179 kg)
TOWING CAPACITY 1,200 lb. (544 kg)
SHIPPING WEIGHT 945 lb. (428 kg)
FUEL CAPACITY 7.1 US gallons (27 litres)
SEAT CAPACITY 4 Land / 2 Water
FRONT RACK Accessory
SPEED ON LAND (ST) 22 mph (35 km/h)
SPEED ON WATER 3 mph (5 km/h)
BRUSHGUARD Accessory
WINCH Accessory
SKID PLATE Standard
BILGE PUMP Standard
AXLE BEARING EXTENSIONS N/A
ENTRY STEP Accessory
OPERATING CONDITIONS All weather, all terrain, -40°F to +104°F (-40°C to +40°C
AVAILABLE COLORS Green, Black or Orange

2021 FRONTIER 600 6X6 Downloads
