2021 CONQUEST PRO 950 XT-L 8X8

2021 CONQUEST PRO 950 XT-L 8X8

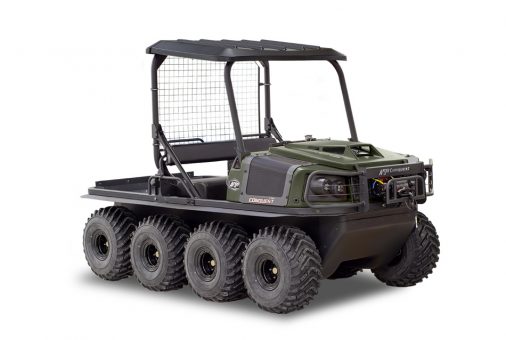

The Argo Conquest Pro 950 XT-L 8×8 is designed for a crew of 2 tough and hardworking professionals and all their heavy duty gear. Powered by a 40 horsepower fan-cooled EFI engine coupled with an Argo Admiral transmission and APS (Argo progressive steering), getting to very difficult worksites is not only possible, but also rather fun. For added crew protection, there is a ROPS (roll-over protection structure) mounted on this Argo, and a hard roof bolted on overhead. The back of the ROPS is shielded by a wire safety mesh to protect the crew when gear shifts around on the trail. This Argo is prepared for hard work and reliability with its automatic drive chain lubrication and oil-filled axles. There is a commercial brushguard mounted on the front for pushing through tough obstacles, and a big 4,500 lb. front-mounted winch for some serious pulling.

2021 CONQUEST PRO 950 XT-L 8X8 Overview

  • 950 Series (40HP EFI fan-cooled) V-Twin Engine
  • Admiral Transmission
  • New 25" XT119 Tires
  • 9" AirLock™ Steel Rims
  • Auto Chain Lubrication
  • Front Flat Floor
  • New Dual Hi/Low Projector Beam Headlights
  • New Dash with Multi-Functional Gauge
  • Oil-Filled Axles
  • Commercial Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • 50 AMP Max Output Alternator
  • Roll over protection ROPS with hard roof
  • Rear protective metal safety mesh

2021 CONQUEST PRO 950 XT-L 8X8 Colors

  • Green

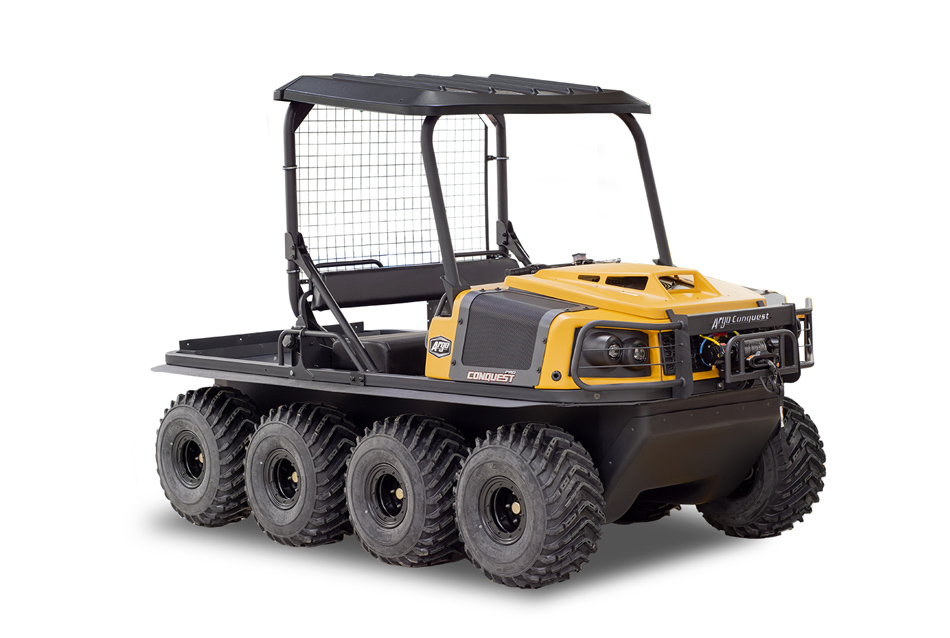

  • Industrial Yellow

2021 CONQUEST PRO 950 XT-L 8X8 Specs

DISPLACEMENT 993 cc
CYLINDER V-Twin
FUEL SYSTEM EFI
COOLING Fan Cooled
ALTERNATOR OUTPUT (MAX) 50 AMP
HP 40HP
RIMS Steel AirLock
TIRES Argo XT 119 25×12-9
GROUND PRESSURE, 18″ RUBBER TRACKS 1.06 psi (7.3 kPa)
GROUND CLEARANCE – TIRES 9.0 in (229 mm)
GROUND CLEARANCE – TRACKS 10.0 in (254 mm)
TRANSMISSION Admiral
TRANSMISSION OPTION ST
HD DRIVE BELT Standard
SERVICE BRAKES Hydraulic
STEERING BRAKES Hydraulic
AUTO CHAIN LUBRICATION Standard
LENGTH 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 80.5 in (2,045 mm)
LOAD CAPACITY – LAND 1,048 lb. (475 kg)
LOAD CAPACITY WATER Not Amphibious
TOWING CAPACITY 2,000 lb. (907 kg)
WEIGHT 2,052 lb. (931 kg)
FUEL CAPACITY 9.5 US gallons (36 litres)
SEAT CAPACITY 2 Land
FRONT RACK Accessory
SPEED ON LAND 17 mph (27 km/h)
SPEED ON WATER N/A
BRUSHGUARD Standard
WINCH – FRONT 4,500 lb. WARN Winch
WINCH – REAR RECEIVER KIT Standard
SKID PLATE Standard
BILGE PUMP Standard
ENTRY STEP Accessory
OPERATING CONDITIONS All weather, all terrain,-40°F to +104°F (-40°C to +40°C)
ROLLOVER PROTECTION STRUCTURE Standard
REAR MESH Standard
ROOF Standard
WINDSHIELD WITH WIPER Accessory
POWER DUMP BOX N/A
STRETCHER FRAME N/A
AVAILABLE COLORS Industrial Yellow/Green
