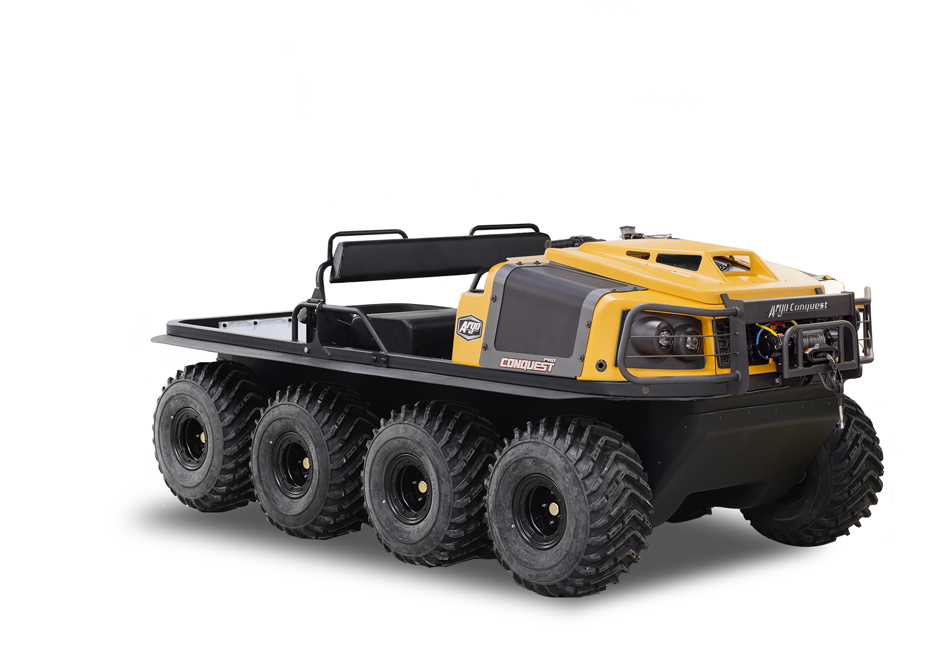

2021 CONQUEST PRO 950 XT 8X8

2021 CONQUEST PRO 950 XT 8X8

Conquer with the pros. Whether it’s transport to remote work sites, protecting natural resources, or monitoring equipment installations way off the main road, this Argo Conquest Pro 950 XT is prepared to conquer it all. This XTV goes anywhere it wants on its new 25” XT119 tires and 9” AirLock steel rims. This Argo is prepared for hard work and reliability with its automatic drive chain lubrication and oil-filled axles. The Conquest Pro 950 XT is powered by an 950 series 40 HP electronic fuel injected (EFI), fan-cooled engine. There is a commercial brushguard mounted on the front for pushing through tough obstacles, and a big 4,500 lb. front-mounted winch for some serious pulling. For trail or worksite illumination, this Conquest is equipped with dual high/low projector beam headlights. A newly designed operator dash features a multi-functional guage to keep you aware of everything during a long day of work.

2021 CONQUEST PRO 950 XT 8X8 Overview

  • 950 Series (40HP EFI fan-cooled) V-Twin Engine
  • Admiral Transmission
  • New 25" XT119 Tires
  • 9" AirLock™ Steel Rims
  • Auto Chain Lubrication
  • Front Flat Floor
  • New Dual Hi/Low Projector Beam Headlights
  • New Dash with Multi-Functional Gauge
  • Oil-Filled Axles
  • Commercial Brushguard with 4,500 lb Winch
  • Premium HDPE Body Plastics
  • 50 AMP Max Output Alternator

2021 CONQUEST PRO 950 XT 8X8 Colors

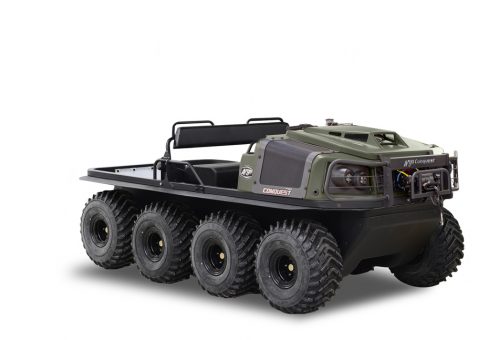

  • Green
  • Industrial Yellow

2021 CONQUEST PRO 950 XT 8X8 Specs

DISPLACEMENT 993 cc
CYLINDER V-Twin
FUEL SYSTEM EFI
COOLING Fan Cooled
ALTERNATOR OUTPUT (MAX) 50 AMP
HP 40HP
RIMS Steel AirLock
TIRES Argo XT 119 25×12-9
GROUND PRESSURE, 18″ RUBBER TRACKS 1.06 psi (7.3 kPa)
GROUND CLEARANCE – TIRES 9.0 in (229 mm)
GROUND CLEARANCE – TRACKS 10.0 in (254 mm)
TRANSMISSION Admiral
TRANSMISSION OPTION ST
HD DRIVE BELT Standard
SERVICE BRAKES Hydraulic
STEERING BRAKES Hydraulic
AUTO CHAIN LUBRICATION Standard
LENGTH 125 in (3,175 mm)
WIDTH 65 in (1,651 mm)
HEIGHT 49 in (1,245 mm)
LOAD CAPACITY – LAND 1,210 lb. (549 kg)
LOAD CAPACITY WATER 510 lb. (231 kg)
TOWING CAPACITY 2,000 lb. (907 kg)
WEIGHT 1,890 lb. (857 kg)
FUEL CAPACITY 9.5 US gallons (36 litres)
SEAT CAPACITY 2 Land / 2 Water
FRONT RACK Accessory
SPEED ON LAND 17 mph (27 km/h)
SPEED ON WATER 3 mph (5 km/h)
BRUSHGUARD Standard
WINCH – FRONT 4,500 lb WARN Winch
WINCH – REAR RECEIVER KIT Accessory
SKID PLATE Standard
BILGE PUMP Standard
ENTRY STEP Accessory
OPERATING CONDITIONS All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
ROLLOVER PROTECTION STRUCTURE N/A
REAR MESH N/A
ROOF N/A
WINDSHIELD WITH WIPER Accessory
POWER DUMP BOX N/A
STRETCHER FRAME N/A
AVAILABLE COLORS Industrial Yellow/Green
