2021 AURORA 850 SX-R 8X8

2021 AURORA 850 SX-R 8X8

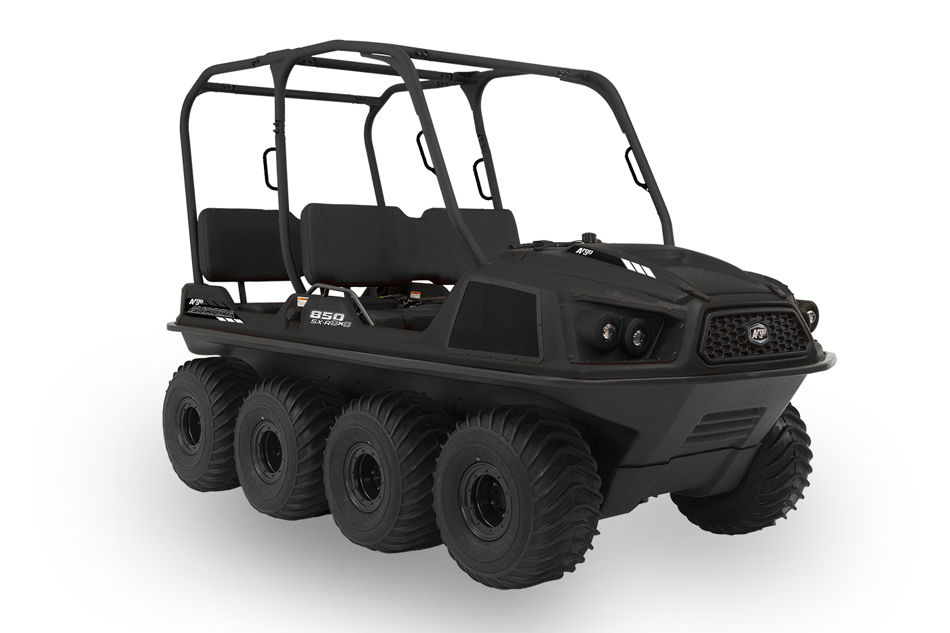

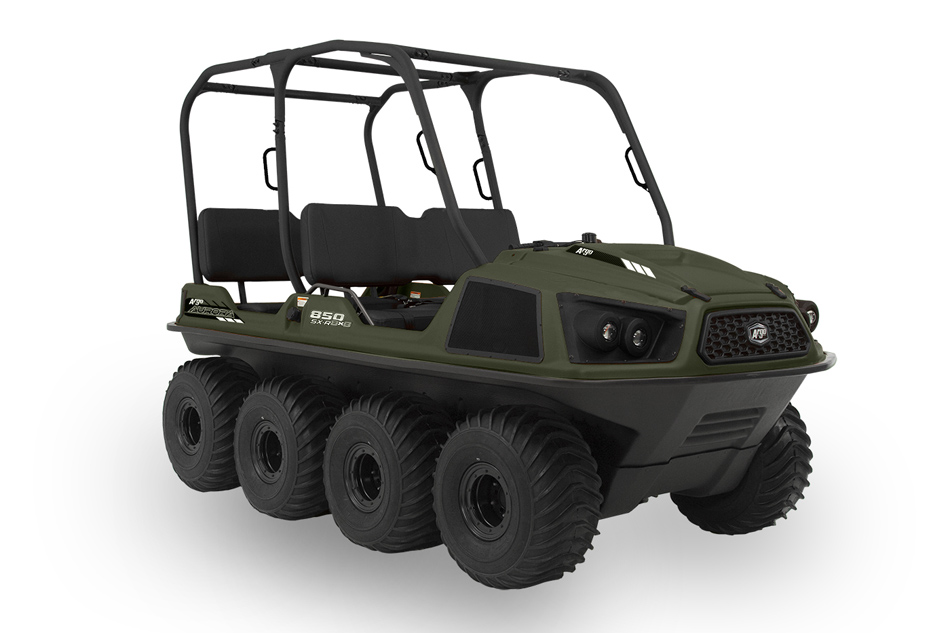

The Argo Aurora 850 SX-R is identical to the 850 SX, with the sharp addition of a roll-over protection structure (ROPS). This provides an extra layer of safety while operating on slopes. It also provides your crew with sturdy hand holds for when you need to crawl down rougher trails. This Aurora 850 SX-R is an amphibious XTV with a big electronic fuel injected (EFI) 33 horsepower V-twin fan-cooled engine and the go-anywhere control that only Argo’s Admiral transmission and Argo Progressive Steering (APS) can provide. Eight big 25” tires mounted on 9” AirLock steel rims, a premium multi-function operator guage, premium HDPE body plastics, dual high-low projector headlights, a front bench seat and rear side seats, and lots and lots of Argo courage. Available in a tough-looking green, sharp orange, or black. The Aurora series of know-no-boundaries ambition and almost unbelievable functional design.

2021 AURORA 850 SX-R 8X8 Overview

  • 850 Series (33HP EFI) V-Twin Engine
  • Admiral Transmission with Triple Differential
  • ARGO Progressive Steering (APS)
  • 25" XT117 Tires
  • 9" AirLock™ Steel or Aluminum Rims
  • Rear Bench or Side Seats
  • Heat-Reflective Firewall
  • Front and Rear Flat Floor with Rubber Mats
  • Dual Hi/Low Projector Beam Headlights
  • Premium Multi-Functional Gauge
  • Premium HDPE Body Plastics
  • Includes roll-over protection ROPS

2021 AURORA 850 SX-R 8X8 Colors

  • Green
  • Orange
  • Black

2021 AURORA 850 SX-R 8X8 Specs

DISPLACEMENT 896 cc
CYLINDER V-Twin
FUEL SYSTEM EFI
COOLING Fan Cooled
ALTERNATOR OUTPUT (MAX) 50 Amps
HP 33HP
RIMS Steel AirLock
TIRES Argo XT117 25×12-9
GROUND PRESSURE, 18″ RUBBER TRACKS 0.88 psi (6.1 kPa)
GROUND CLEARANCE – TIRES 10 in (254 mm)
GROUND CLEARANCE – TRACKS 11.0 in (279 mm)
TRANSMISSION Admiral w/APS
TRANSMISSION OPTION ST or HT
DRIVE BELT Heavy Duty
SERVICE BRAKES Hydraulic
STEERING BRAKES Hydraulic
BRAKE COOLING FAN Accessory
LENGTH 119 in (3,023 mm)
WIDTH 60 in (1,524 mm)
HEIGHT 77 in (1,956 mm)
LOAD CAPACITY – LAND 870 lb. (395 kg)
LOAD CAPACITY WATER 570 lb. (258 kg)
TOWING CAPACITY 1,800 lb. (816 kg)
SHIPPING WEIGHT 1,680 lb. (762 kg)
FUEL CAPACITY 7.1 US gallons (27 litres)
SEAT CAPACITY 4 Land / 4 Water
FRONT RACK Accessory
SPEED ON LAND (ST) 24 mph (39km/h)
SPEED ON LAND (HT) 18 mph (29 km’h)
SPEED ON WATER 3 mph (5 km/h)
BRUSHGUARD Accessory
WINCH Accessory
SKID PLATE Standard
BILGE PUMP Standard
AXLE BEARING EXTENSIONS Standard
ENTRY STEP Accessory
OPERATING CONDITIONS All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
AVAILABLE COLORS Green, Black, Orange
