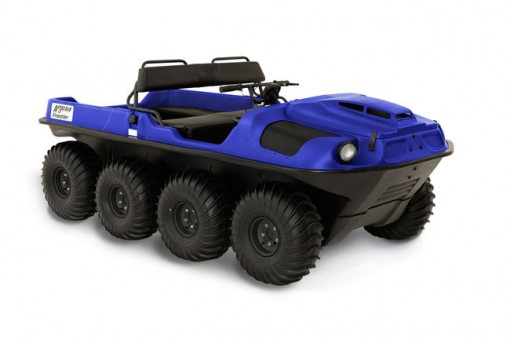

The 700 combines a 23 hp EFI-equipped Vanguard V-twin with the option of ST gearing for a top speed of 22 mph, or HT gearing that drops top speed to 19 mph in exchange for more torque. This XTV can carry up to 830 lbs. and six people on land and up to 730 lbs. and four people on water. Towing capacity is 1,200 lbs. Available colors include green, black, blue and yellow.
| HORSEPOWER | 23HP |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | EFI |
| COOLING | FAN COOLED |
| ALTERNATOR OUTPUT (MAX) | 20 AMPS |
| SERVICE BRAKES | MECHANICAL |
| STEERING BRAKES | HYDRAULIC |
| BRAKE COOLING FAN | STANDARD |
| TRANSMISSION | CLASSIC |
| TRANSMISSION OPTION | ST OR HT |
| HD DRIVE BELT | —– |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | —– |
| WINCH | —– |
| FRONT RACK | —– |
| BILGE PUMP | STANDARD |
| LOAD CAPACITY – LAND | 830 LB. (376 KG) |
| LOAD CAPACITY – WATER | 730 LB. (331 KG) |
| TOWING CAPACITY | 1,200 LB. (544 KG) |
| SEATING CAPACITY – LAND | 6 |
| SEATING CAPACITY – WATER | 4 |
| FUEL CAPACITY | 7.1 US GALLONS (27 LITRES) |
| SPEED – LAND (ST TRANSMISSION) | 22 MPH (35 KM/H) |
| SPEED – LAND (HT TRANSMISSION) | 19 MPH (30 KM/H) |
| SPEED – WATER | 3 MPH (5 KM/H) |
| WEIGHT | 1220 LB. (554 KG) |
| LENGTH | 102 IN (2,591 MM) |
| WIDTH | 58 IN (1,473 MM) |
| HEIGHT | 52.5 IN (1,334 MM) |
| AXLE BEARING EXTENSIONS | STANDARD |
| ENTRY STEP | —– |
| TIRES | ARGO AT189 24X10-8 |
| RIMS | STEEL OFF-SET |
| GROUND PRESSURE (TIRES) | 1.7 PSI (13.5 KPA) |
| GROUND PRESSURE (TRACKS) | 0.67 PSI (4.6 KPA) |
| GROUND CLEARANCE (TIRES) | 9.5 IN (241 MM) |
| GROUND CLEARANCE (TRACKS) | 10.5 IN (267 MM) |
| WARRANTY | 1 YEAR |
| COLORS | GREEN/BLACK/BLUE/YELLOW |
