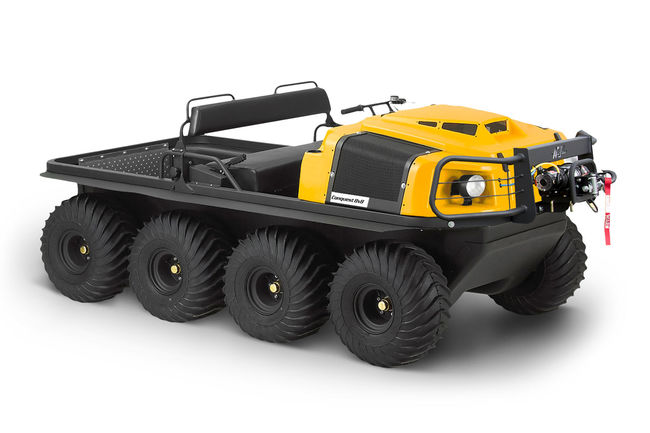

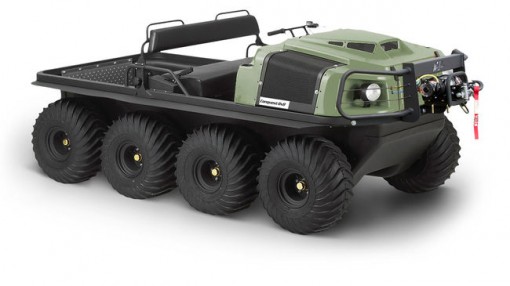

It may be basic, but this truck-like XTV has the highest cargo capacity of any Argo. This model comes with a 30 hp liquid-cooled V-twin and an Admiral HT transmission with a top speed of 17 mph. This two seater can carry up to 1,500 lbs. on land and 865 lbs. on water. Maximum towing payload is 2,000 lbs. Standard equipment includes a 4,500 lb. Warn winch, steel beadlock rims, a brush guard and a front cargo rack. This model is available in industrial yellow and green.
| HORSEPOWER | 30HP |
| CYLINDER | V-TWIN |
| FUEL SYSTEM | EFI |
| COOLING | LIQUID COOLED |
| ALTERNATOR OUTPUT (MAX) | 60 AMP |
| SERVICE BRAKES | HYDRAULIC |
| STEERING BRAKES | HYDRAULIC |
| AUTO CHAIN LUBRICATION | STANDARD |
| TRANSMISSION | ADMIRAL |
| TRANSMISSION OPTION | HT |
| HD DRIVE BELT | STANDARD |
| FULL SKID PLATE | STANDARD |
| BRUSHGUARD | STANDARD |
| WINCH – FRONT | 4,500 LB. WARN WINCH |
| WINCH – REAR RECEIVER KIT | STANDARD |
| FRONT RACK | —– |
| ROLLOVER PROTECTION STRUCTURE | —– |
| REAR MESH | —– |
| ROOF | —– |
| WINDSHIELD WITH WIPER | —– |
| POWER DUMP BOX | —– |
| STRETCHER, VICE, SPOT AND FLASHING LIGHT | —– |
| BILGE PUMP | STANDARD |
| LOAD CAPACITY – LAND | 1,500 LB. (680 KG) |
| LOAD CAPACITY – WATER | 865 LB. (392 KG) |
| TOWING CAPACITY | 2,000 LB. (907 KG) |
| SEATING CAPACITY – LAND | 2 |
| SEATING CAPACITY – WATER | 2 |
| FUEL CAPACITY | 9.5 US GALLONS (36 LITRES) |
| SPEED – LAND | 17 MPH (27 KM/H) |
| SPEED – WATER | 3 MPH (5 KM/H) |
| WEIGHT | 1,735 LB. (787 KG) |
| LENGTH | 132 IN (3,353 MM) |
| WIDTH | 65 IN (1,651 MM) |
| HEIGHT | 79 IN (2,007 MM) |
| AXLE BEARING EXTENSIONS | STANDARD |
| TIRES | ARGO XT 117 25X12-9 |
| RIMS | STEEL BEAD LOCK |
| GROUND PRESSURE (TIRES) | 1.7 PSI (13.5 KPA) |
| GROUND PRESSURE (TRACKS) | 0.67 PSI (4.6 KPA) |
| GROUND CLEARANCE (TIRES) | 9.0 IN (229 MM) |
| GROUND CLEARANCE (TRACKS) | 10.0 IN (254 MM) |
| WARRANTY | 1 YEAR |
| COLORS | INDUSTRIAL YELLOW/GREEN |
