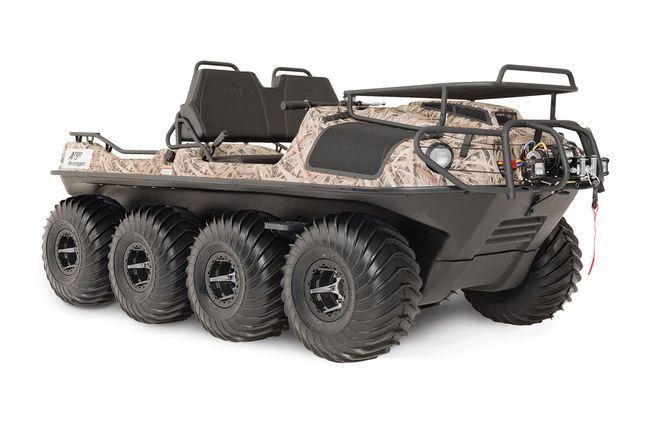

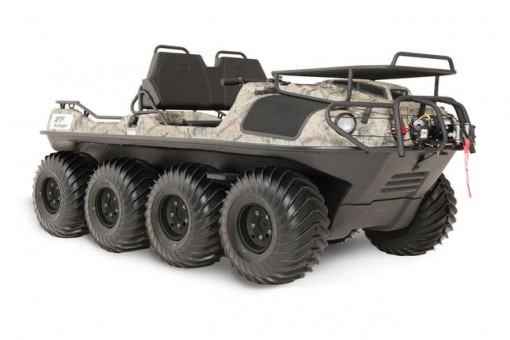

2019 Avenger 800 Hunt Master

2019 Avenger 800 Hunt Master

This XTV comes with everything you need for hunting including a 3,500 lb. Warn winch, a brush guard, a front cargo rack and a hull painted in Mossy Oak’s Breakup Country or Shadow Grass Blades camo patterns. It’s powered by a 30 hp liquid cooled V-twin paired with an Admiral transmission available with ST gearing for a 20 mph top speed or HT gearing for a 17 mph top speed and more torque. It can carry up to 970 lbs. and 6 people on land and 820 lbs. with up to four people on water. Maximum towing payload is 1,800 lbs.

2019 Avenger 800 Hunt Master Overview

  • 30 HP V-Twin Liquid Cooled EFI Engine
  • Admiral High Torque or Standard Transmission
  • Steel Offset Rims with 25” tires
  • 3500 lb. Winch with steel cable
  • Brushguard
  • Front Rack
  • Breakup Country Camo or Shadow Grass Blades Camo

2019 Avenger 800 Hunt Master Colors

swatch-breakup swatch-shadowgrass

2019 Avenger 800 Hunt Master Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 20 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION ADMIRAL
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
WINCH 3,500 LB. WARN WINCH
FRONT RACK STANDARD
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 970 LB. (440 KG)
LOAD CAPACITY – WATER 820 LB. (372 KG)
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 6
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION) 17 MPH (27 KM/H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,430 LB. (649 KG)
LENGTH 124 IN (3,150 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 52 IN (1,321 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP —–
TIRES ARGO AT189 25X12-9
RIMS STEEL OFF-SET
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 11.0 IN (279 MM)
WARRANTY 1 YEAR
COLORS BREAKUP COUNTRY CAMO/SHADOW GRASS CAMO

2019 Avenger 800 Hunt Master Downloads

2019 Argo Avenger Series Brochure 681.42 KB 122 downloads

...
