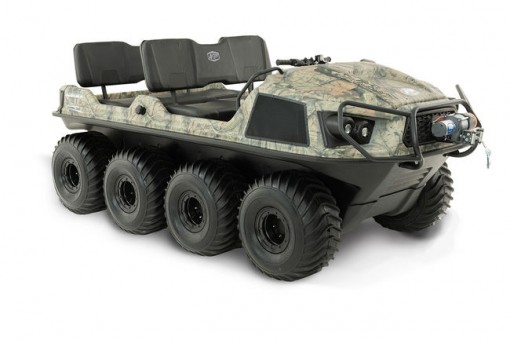

2019 Aurora 800 SX Hunt Master

2019 Aurora 800 SX Hunt Master

This hunting model has ATV-like progressive steering and forward-facing seating for four people. It’s powered by a 30 hp liquid cooled V-twin paired with an Admiral transmission available with ST gearing for a 20 mph top speed or HT gearing for a 17 mph top speed and more torque. It can carry up to 930 lbs. on land and 780 lbs. on water. Maximum towing payload is 1,800 lbs. Standard equipment includes a 3,500 lb. Warn winch with synthetic rope, steel beadlock rims and a brush guard. Argo offers this model in Mossy Oak’s Breakup Country camouflage pattern.

2019 Aurora 800 SX Hunt Master Overview

  • 30HP V-Twin EFI Liquid Cooled Engine
  • Admiral High Torque or Standard Transmission
  • ARGO Progressive Steering (APS)
  • Steel Bead Lock Rims with 25” tires
  • 3500 lb. winch with synthetic rope
  • Brushguard
  • Color: Breakup Country Camo

2019 Aurora 800 SX Hunt Master Colors

swatch-breakup

2019 Aurora 800 SX Hunt Master Specs

HORSEPOWER 30HP
CYLINDER V-TWIN
FUEL SYSTEM EFI
COOLING LIQUID COOLED
ALTERNATOR OUTPUT (MAX) 40 AMPS
SERVICE BRAKES HYDRAULIC
STEERING BRAKES HYDRAULIC
BRAKE COOLING FAN —–
TRANSMISSION ADMIRAL W/APS
TRANSMISSION OPTION ST OR HT
HD DRIVE BELT STANDARD
FULL SKID PLATE STANDARD
BRUSHGUARD STANDARD
FRONT RACK —–
WINCH 3,500 LB. WARN
BILGE PUMP STANDARD
LOAD CAPACITY – LAND 930 LB. (422 KG)
LOAD CAPACITY – WATER 780 LB. (654 KG)
TOWING CAPACITY 1,800 LB. (816 KG)
SEATING CAPACITY – LAND 4
SEATING CAPACITY – WATER 4
FUEL CAPACITY 7.1 US GALLONS (27 LITRES)
SPEED – LAND (ST TRANSMISSION) 20 MPH (32 KM/H)
SPEED – LAND (HT TRANSMISSION) 17 MPH (27 KM’H)
SPEED – WATER 3 MPH (5 KM/H)
WEIGHT 1,470 LB. (668 KG)
LENGTH 124 IN (3,150 MM)
WIDTH 60 IN (1,524 MM)
HEIGHT 50 IN (1,271 MM)
AXLE BEARING EXTENSIONS STANDARD
ENTRY STEP STANDARD
TIRES ARGO XT117 25X12-9
RIMS STEEL BEAD LOCK
GROUND PRESSURE (TIRES) 1.7 PSI (13.5 KPA)
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.5 IN (241 MM)
GROUND CLEARANCE (TRACKS) 11.0 IN (279 MM)
WARRANTY 1 YEAR
COLORS BREAKUP COUNTRY CAMO
GROUND PRESSURE (TRACKS) 0.67 PSI (4.6 KPA)
GROUND CLEARANCE (TIRES) 9.0 IN (229 MM)
GROUND CLEARANCE (TRACKS) 10.0 IN (254 MM)
WARRANTY 1 YEAR
COLORS INDUSTRIAL YELLOW/GREEN
