Name: Shank's Argo
Price range: $$$

This XTV comes with several popular accessories, including a front cargo rack, a brushguard and a Warn winch rated at 3,500 lbs. It can handle a payload of 560 lbs., tow up to 1,200 lbs. and seat up to four people. The 23 HP air-cooled Kohler Command Pro V-twin uses fuel injection for better fuel economy and easy starting in any weather, while Argo’s Admiral transmission provides gradual brake steering that’s easy to learn and control.

Overview
Colors
Specs

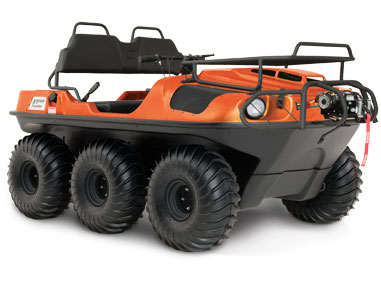

2018 Frontier 6×6 Scout ST LE Overview

Engine – Kohler V-Twin, liquid cooled

23 HP
Transmission (CLASSIC)

STD
Transmission (ADMIRAL)

N/A
Tires – diameter (steel off-set rims)

24”
Load capacity

560 lb (254 kg)
Seating (on land/on water)

4 / 2
Warn 3,500 lb. winch (front mounted)

STD
Brushguard

STD
Skid plate (full length)

STD
Bilge pump

STD
Entry step (single)

STD
Brake cooling fan

OPT-DLR
Axle Bearing Extensions

STD

2018 Frontier 6×6 Scout ST LE Colors

Orange
Green

2018 Frontier 6×6 Scout ST LE Specs

Engine

Kohler Command Pro
Engine Warranty

3 year
Engine Type

4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
Horsepower

23
Displacement

747 cc
Cooling

Air Cooled
Alternator

Optional
Service Brakes

Mechanical
Steering Brakes

Hydraulic
Brake Cooling Fan

Optional
Steering

One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
Controls

Right-hand twist grip throttle. Dash mounted light and ignition switch.
Clutch

Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission

Admiral
Transmission Option

STD or HT
Drive System

Chain drive to machined sprockets. 1 1/4” diameter axles with triple sealed greaseable outer bearings.
Final Drive

RC60 roller chain drive to all 6 axles.
HD Drive Belt

Optional
Frame

Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
Body

R Belt-driven, Con AD STD Chain drive to ma Optional Formed steel channel frame, welded for h CLASSIC2 STD CLASSIC2 STD or HT ADMIRAL3 STD, HT or HS Optional Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat. Sta Standard Vacuum formed High Molecular Weight Polyethylene (HMWPE) on-piece lower body.
Full Skid Plate

Standard
Brushguard

Standard
Winch

3,500 lb. Warn Winch
Bilge Pump

Standard
Load Capacity – Land

560 lb. (254 kg)
Load Capacity – Rear Compartment

140 lb. (64 kg)
Load Capacity – Water

360 lb. (163 kg)
Towing Capacity

1,200 lb. (544 kg)
Seating Capacity – Land

4
Seating Capacity – Water

2
Fuel Capacity

7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
Speed – Land

22 mph (35 km/h)
Speed – Water

3 mph (5 km/h)
Shipping Weight

990 lb. (449 kg)
Length

102 in (2,591 mm)
Width

58 in (1,473 mm)
Height

52.5 in (1,334 mm)
Axle Bearing Extensions

Standard
Instrumentation

LCD digital gauge cluster: speedometer, odometer, voltmeter, hour meter, tachometer, low oil pressure, parking brake reminder lights and check engine light.
Entry Step

Standard
Tires

Argo AT189 24×10.0-8 NHS
Ground Pressure

2.5 psi (17.2 kPa) using tires
Ground Clearance (Tires)

9.5 in (241 mm)
Ground Clearance (Tracks)

10.5 in (267 mm)
Operating Conditions

All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
Warranty

1 Year
