2018 Frontier 6×6 Scout S

2018 Frontier 6×6 Scout S

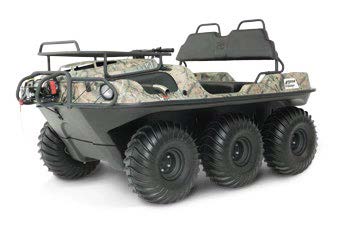

The smallest in Argo’s Wilderness series, this XTV comes with everything you need for hunting and angling trips. Standard equipment includes a front cargo rack, brushguard and a 3,500 lb. Warn winch. This model can carry up to 560 lbs. and seats up to four people. This model is available in Mossy Oak’s Break-Up Country or Shadow Grass Blades camo patterns.

Contact Us

2018 Frontier 6×6 Scout S Overview

  • Engine – Kohler V-Twin, liquid cooled
    23 HP
  • Transmission (CLASSIC)
    STD
  • Transmission (ADMIRAL)
    N/A
  • Tires – diameter (steel off-set rims)
    24”
  • Load capacity
    560 lb (254 kg)
  • Seating (on land/on water)
    4 / 2
  • Warn 3,500 lb. winch (front mounted)
    STD
  • Brushguard
    STD
  • Skid plate (full length)
    STD
  • Bilge pump
    STD
  • Entry step (single)
    STD
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Frontier 6×6 Scout S Colors

  • Break-up Country
  • Shadow Grass

2018 Frontier 6×6 Scout S Specs

  • Engine
    Kohler Command Pro
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    23
  • Displacement
    747 cc
  • Cooling
    Air Cooled
  • Alternator
    Optional
  • Service Brakes
    Mechanical
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Classic
  • Transmission Option
    STD or HT
  • Drive System
    Chain drive to machined sprockets. 1 1/4” diameter axles with triple sealed greaseable outer bearings.
  • Final Drive
    RC60 roller chain drive to all 6 axles.
  • HD Drive Belt
    Optional
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) on-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Standard
  • Winch
    3,500 lb. Warn Winch
  • Bilge Pump
    Standard
  • Load Capacity – Land
    560 lb. (254 kg)
  • Load Capacity – Rear Compartment
    140 lb. (64 kg)
  • Load Capacity – Water
    360 lb. (163 kg)
  • Towing Capacity
    1,200 lb. (544 kg)
  • Seating Capacity – Land
    4
  • Seating Capacity – Water
    2
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    22 mph (35 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    990 lb. (449 kg)
  • Length
    102 in (2,591 mm)
  • Width
    58 in (1,473 mm)
  • Height
    52.5 in (1,334 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD digital gauge cluster: speedometer, odometer, voltmeter, hour meter, tachometer, low oil pressure, parking brake reminder lights and check engine light.
  • Entry Step
    Standard
  • Tires
    Argo AT189 24×10.0-8 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
