Name: Shank's Argo
Price range: $$$

This model is built for maximum off-road capability, combining beadlock rims to allow low tire pressures for conquering rough terrain and an Admiral transmission with a choice of standard, high torque or high-speed gearing to get the right balance between top speed and torque. The STR has a maximum payload of 1,045 lbs., tows up to 1,800 lbs. and seats up to 6 people. This model is available in green or black.

Overview
Colors
Specs

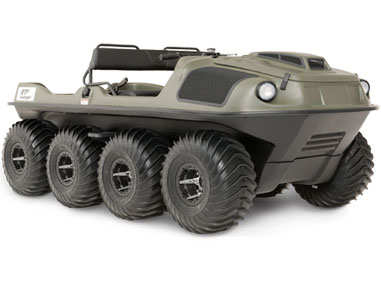

2018 Avenger 8×8 STR Overview

Engine – Kohler V-Twin, liquid cooled

30 HP
Transmission (CLASSIC)

N/A
Transmission (ADMIRAL)

STD, HT, HS
Tires – diameter (steel off-set rims)

25″
Load capacity

1045 lb (474 kg)
Seating (on land/on water)

6 / 4
Warn 3,500 lb. winch (front mounted)

STD
Brushguard

OPT-DLR
Skid plate (full length)

STD
Bilge pump

STD
Entry step (single)

STD
Brake cooling fan

STD
Axle Bearing Extensions

STD

2018 Avenger 8×8 STR Colors

Black
Green

2018 Avenger 8×8 STR Specs

Engine

Kohler Aegis
Engine Warranty

3 year
Engine Type

4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
Horsepower

30
Displacement

747 cc
Cooling

Liquid Cooled
Alternator

Optional
Service Brakes

Hydraulic
Steering Brakes

Hydraulic
Brake Cooling Fan

Optional
Steering

One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
Controls

Right-hand twist grip throttle. Dash mounted light and ignition switch.
Clutch

Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
Transmission

Admiral
Transmission Option

STD, HT, or HS
Drive System

Chain drive to machined sprockets. 1 3/8” diameter axles with triple sealed greaseable outer bearings
Final Drive

RC50-2 and RC60 roller chain drive to all 8 axles
HD Drive Belt

Optional
Frame

Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
Body

Vacuum formed High Molecular Weight Polyethylene (HMWPE) one-piece lower body.
Full Skid Plate

Standard
Brushguard

Optional
Winch

Optional
Bilge Pump

Standard
Load Capacity – Land

1,045 lb. (474 kg)
Load Capacity – Rear Compartment

—–
Load Capacity – Water

895 lb. (406 kg)
Towing Capacity

1,800 lb. (816 kg)
Seating Capacity – Land

6
Seating Capacity – Water

4
Fuel Capacity

7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
Speed – Land

20 mph (32 km/h)
Speed – Water

3 mph (5 km/h)
Shipping Weight

1,355 lb. (615 kg)
Length

119 in (3,023 mm)
Width

60 in (1,524 mm)
Height

46 in (1,169 mm)
Axle Bearing Extensions

Standard
Instrumentation

LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer. Low Oil Pressure, Check Engine and Parking Brake Reminder Lights
Entry Step

Standard
Tires

Argo AT189 25×12.00-9 NHS
Ground Pressure

2.5 psi (17.2 kPa) using tires
Ground Clearance (Tires)

9.5 in (241 mm)
Ground Clearance (Tracks)

10.5 in (267 mm)
Operating Conditions

All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
Warranty

1 Year
