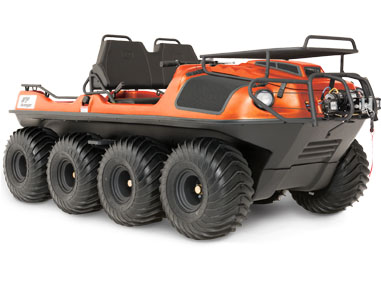

2018 Avenger 8×8 ST LE

2018 Avenger 8×8 ST LE

This XTV comes with Argo’s most popular accessories straight from the factory, including a front cargo rack, brushguard, aluminum beadlock rims and a 3,500 lb. Warn winch. It also comes with Argo’s new QT muffler which makes the 30 HP Kohler Aegis V-twin quieter than ever before. The ST LE can handle a payload of 1,070 lbs., tow up to 1,800 lbs. and seat up to 6 people, while the Admiral transmission is available with standard or high torque gearing. This XTV model is available in green or orange.

Contact Us

2018 Avenger 8×8 ST LE Overview

  • Engine – Kohler V-Twin, liquid cooled
    30 HP
  • Transmission (CLASSIC)
    N/A
  • Transmission (ADMIRAL)
    STD or HT
  • Tires – diameter (steel off-set rims)
    25″
  • Load capacity
    1070 lb (485 kg)
  • Seating (on land/on water)
    6 / 4
  • Warn 3,500 lb. winch (front mounted)
    STD
  • Brushguard
    STD
  • Skid plate (full length)
    STD
  • Bilge pump
    STD
  • Entry step (single)
    STD
  • Brake cooling fan
    OPT-DLR
  • Axle Bearing Extensions
    STD

2018 Avenger 8×8 ST LE Colors

  • Orange
  • Green

2018 Avenger 8×8 ST LE Specs

  • Engine
    Kohler Aegis
  • Engine Warranty
    3 year
  • Engine Type
    4 cycle OHV gasoline-powered engine features electronic fuel injection (EFI), full pressure lubrication and V-twin cylinders.
  • Horsepower
    30
  • Displacement
    747 cc
  • Cooling
    Liquid Cooled
  • Alternator
    Optional
  • Service Brakes
    Hydraulic
  • Steering Brakes
    Hydraulic
  • Brake Cooling Fan
    Optional
  • Steering
    One-piece, ergonomic handlebar. Steering control features hand brake. For safety and ease of handling, the Argo steering transmission provides continuous torque to all axels.
  • Controls
    Right-hand twist grip throttle. Dash mounted light and ignition switch.
  • Clutch
    Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission.
  • Transmission
    Admiral
  • Transmission Option
    STD or HT
  • Drive System
    Chain drive to machined sprockets. 1 3/8” diameter axles with triple sealed greaseable outer bearings
  • Final Drive
    RC50-2 and RC60 roller chain drive to all 8 axles
  • HD Drive Belt
    Standard
  • Frame
    Formed steel channel frame, welded for high strength and durability. Protected with Bonderite® epoxy-acrylic base coat, textured black epoxy top coat.
  • Body
    Vacuum formed High Molecular Weight Polyethylene (HMWPE) one-piece lower body.
  • Full Skid Plate
    Standard
  • Brushguard
    Standard
  • Winch
    3,500 lb. Warn Winch
  • Bilge Pump
    Standard
  • Load Capacity – Land
    1,070 lb. (485 kg)
  • Load Capacity – Rear Compartment
    —–
  • Load Capacity – Water
    920 lb. (417 kg)
  • Towing Capacity
    1,800 lb. (816 kg)
  • Seating Capacity – Land
    6
  • Seating Capacity – Water
    4
  • Fuel Capacity
    7.1 US gallons (27 litres) See-through polyethylene fuel tank. 8 hrs. operation.
  • Speed – Land
    20 mph (32 km/h)
  • Speed – Water
    3 mph (5 km/h)
  • Shipping Weight
    1,490 lb. (676 kg)
  • Length
    119 in (3,023 mm)
  • Width
    60 in (1,524 mm)
  • Height
    46 in (1,169 mm)
  • Axle Bearing Extensions
    Standard
  • Instrumentation
    LCD Digital Gauge Cluster: Speedometer, Odometer, Voltmeter, Hour Meter, Tachometer. Low Oil Pressure, Check Engine and Parking Brake Reminder Lights
  • Entry Step
    Standard
  • Tires
    Argo AT189 25×12.00-9 NHS
  • Ground Pressure
    2.5 psi (17.2 kPa) using tires
  • Ground Clearance (Tires)
    9.5 in (241 mm)
  • Ground Clearance (Tracks)
    10.5 in (267 mm)
  • Operating Conditions
    All weather, all terrain, -40°F to +104°F (-40°C to +40°C)
  • Warranty
    1 Year
