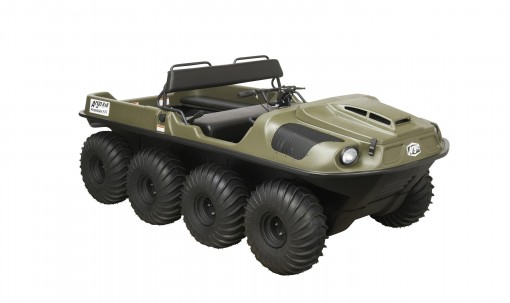

This 8-wheel drive amphibious off-road vehicle is powered by a 4 stroke OHV V-Twin air cooled 747cc, 23 hp (17 kW) Kohler Command Pro engine with electronic fuel injection. It has a load capacity of up to 1000 lb. / 454 kg on land or 900 lb. / 408 kg on water, can transport 6 passengers on land, 4 on water and features a towing capacity of 1,400 lb. / 635 kg
The most affordable ARGO 8×8 vehicle features great performance in difficult terrain and has excellent water crossing capabilities. Great load carrying capacity and powerful towing capabilities at an attractive price. Rubber tracks available for better traction in soft terrain or snow.
• Electronic Fuel Injection provides:
1. Increased fuel efficiency
2. Reliable cold weather starting
3. Improved high altitude performance
4. On-board diagnostics
• Large rear cargo capacity
• Long wheel base for smooth ride comfort over rough terrain
• Large triple-sealed outer axle bearings
• Front bearing extensions
• 8-wheel traction with low centre of gravity for extra stability
• Electronic ignition
• Proven, state-of-the-art automatic continuously variable transmission with high and low range forward and reverse
• Self-adjusting hydraulic brakes with vented discs
• Low emissions
• Ride friendly seat
• USB Power Outlet
• Entry Step

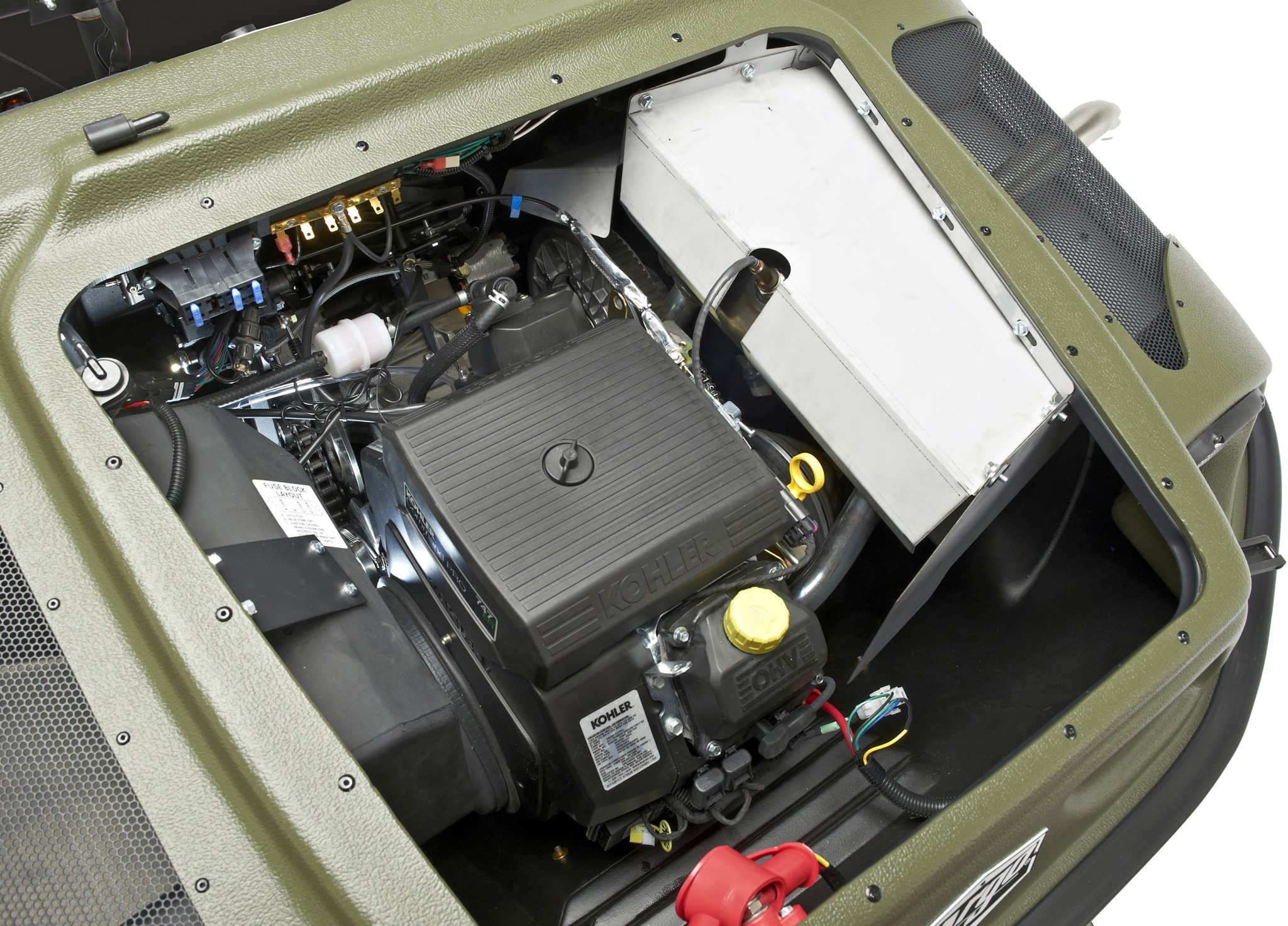

| Engine | 4 cycle OHV V-Twin gasoline engine, electronic ignition, full pressure lubrication and oil filter. 3 year engine warranty |
| Model | Kohler Command Pro |
| Horsepower | 23 |
| Displacement | 747cc |
| Cooling | Air Cooled |
| Starting | Electric |
| Brakes | Hydraulic |
| Steering | One piece ergonomic handlebar steering control with mounted brake lever. For safety and ease handling, the ARGO steering transmission provides continuous torque to all axles. |
| Controls | Right-hand twist grip throttle. Light switch and ignition switch. |
| Clutch | Belt-driven, Continuously Variable Transmission (CVT) maximizes engine power to the transmission. |
| Transmission | Planetary differential transmission with High and Low range; Forward, Neutral, Reverse. |
| Drive System | Roller chains drive machined sprockets that are spline-fit onto 1 1/4″ diameter axles. Bearings are greasable. |
| Frame | Formed steel channel construction, welded for high strength and durability. Polyester powder-coated for lasting protection |
| Body | Vacuum formed High Molecular Weight Polyethylene. |
| Full Skid Plate | Optional |
| Load Capacity – On Land | 1000 lb. / 454 kg |
| Load Capacity – On Water | 900 lb. / 408 kg |
| Towing Capacity | 1400 lb. / 635 kg |
| Seating Capacity – On Land | 6 persons |
| Seating Capacity – On Water | 4 persons |
| Fuel Capacity | 7.1 US Gallons (27 litres) See through polyethylene fuel tank. 8 hours of operation based on load and operating conditions. |
| Speed (on land) | 19 mph / 30 km per hour |
| Speed (on water) | 3 mph / 5 km per hour |
| Shipping Weight | 1090 lb. / 476 kg |
| Axle Bearing Extensions Front | Standard |
| Axle Bearing Extensions Rear | Optional |

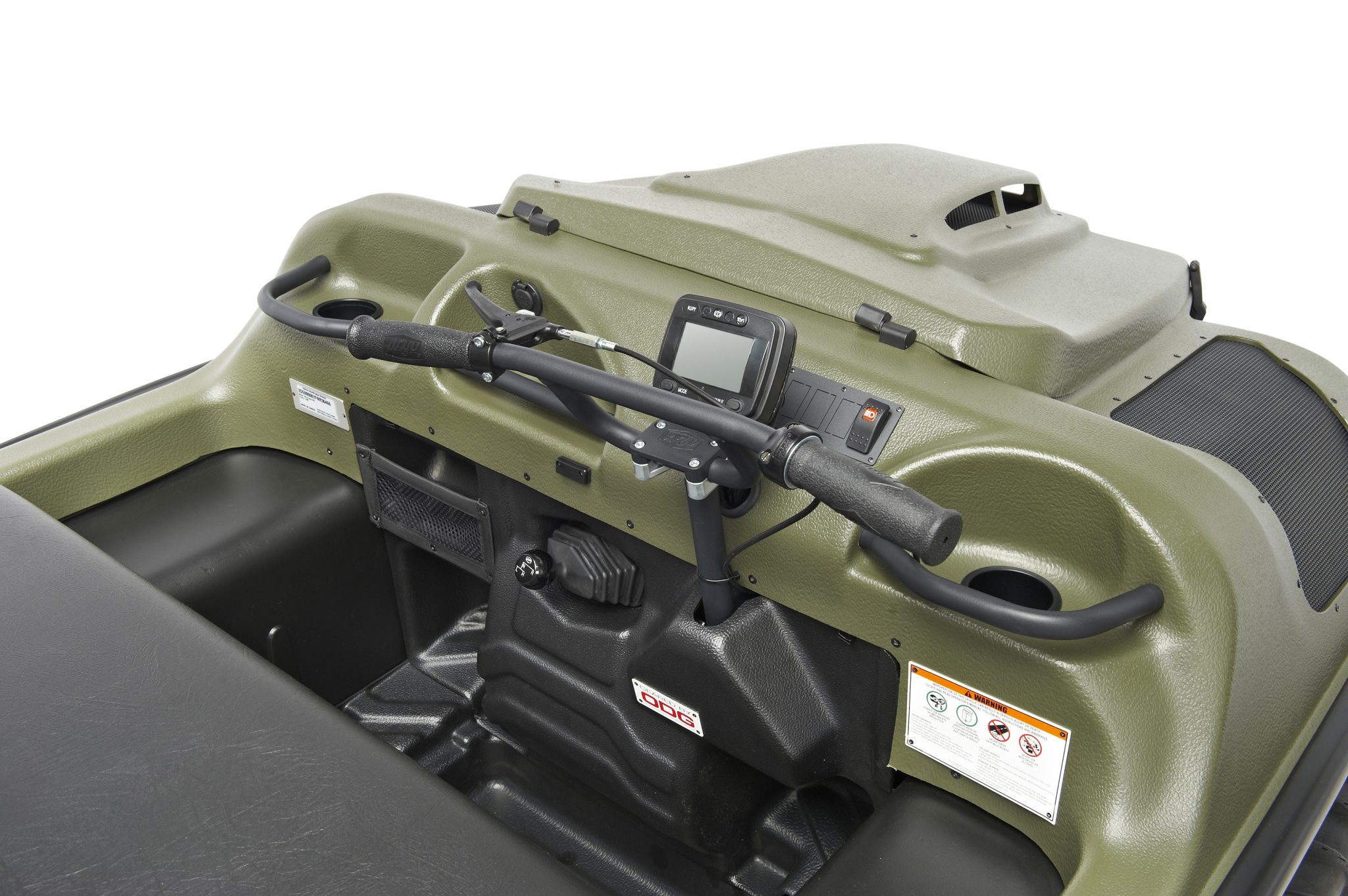

| LCD Digital Gauge Cluster | Speedometer, Odometer, Voltmeter, Hourmeter, Tachometer, Low Oil Pressure and Parking Brake Reminder Lights, Check Engine Light |
| Tires | ARGO AT189 24 x 10.00-8NHS |
| Ground Pressure | 1.7 psi (13.5 kPa) using tires, 0.67 psi (4.6 kPa) using tracks |
| Ground Clearance Tires | 9″ (230 mm) |
| Ground Clearance Tracks | 10″ (255 mm) |
| Operating Conditions | All weather, all terrain, -40C to +40C |
| Dimensions |  |
